Vimkan

-26%
,

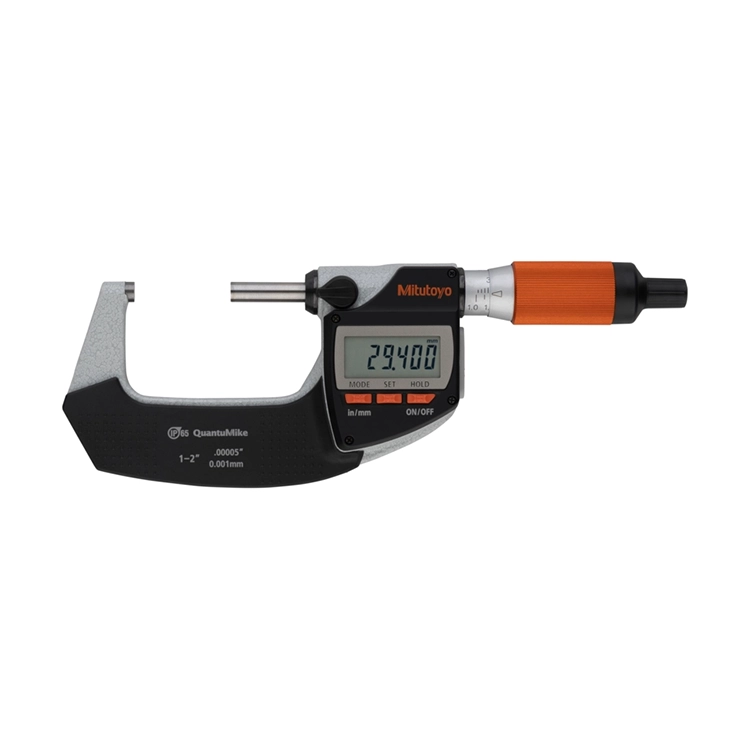

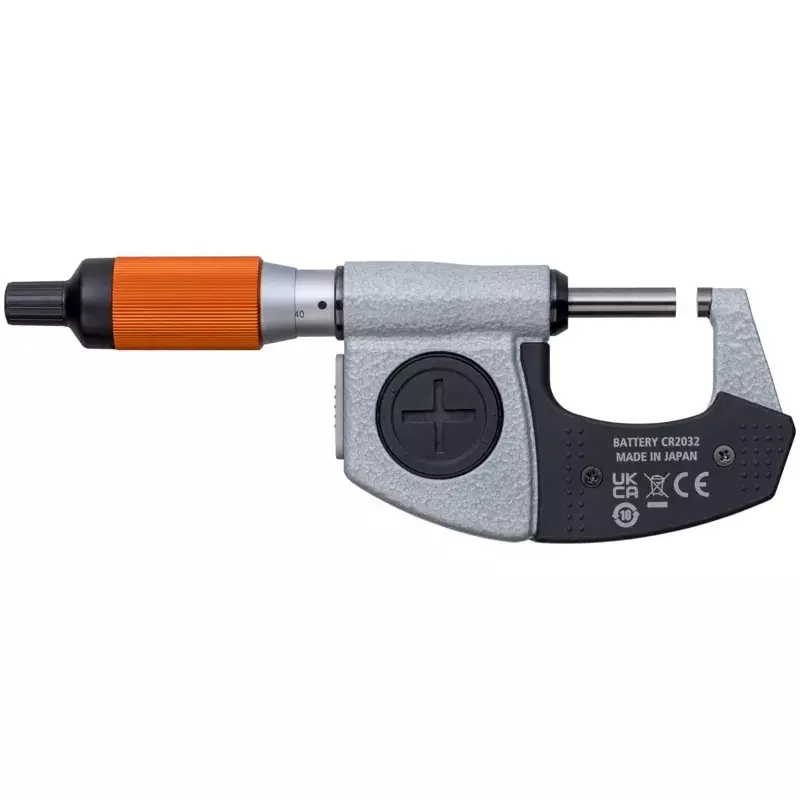

Mitutoyo 293-181-40 QuantuMike Digimatic Micrometer IP65 SPC Data Output 25.4-50.8mm (1-2″)


Micrometer Features:



  • Brand: Mitutoyo (Made in Japan)
  • Range: 25.4-50.8mm (1-2″)
  • Resolution: 0.001mm (0.00005″)
  • Accuracy: ± 0.001mm (0.00005″)
  • Flatness:  0.0003mm (0.00012″)
  • Parallelism: 0.001mm (0.00004″)
  • IP65 Protected: Waterproof (coolant & dust resistant)
  • 2mm travel per thimble rotation
  • Carbide measuring faces, micro lap finish
  • Ratchet Thimble
  • SPC data output- YES
  • Thimble and Sleeve scale
  • Hold function
  • Inch/Metric

$238.93 $324.00 Inc GST

Compare

Description

This is an IP65 micrometer offering movement four times as fast as a standard micrometer. It presents you with the following benefits:

  • Faster measurement is achieved by using a coarser thread which feeds the spindle by 2 mm per thimble rotation.
  • Extraordinary battery life of 2 years
  • Outstanding accuracy
  • Ratched thimble mechanism ensures easy single-handed or stand operation.
  • Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.



Simple Contact Form
Name

Specifications:



Brand Mitutoyo
Range 25-50mm
Resolution 0.001mm
Model Standard
IP Rating IP65
Display Digital, Digital & Mechanical
Data Output Yes
Code 293-181-40

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Mitutoyo 293-181-40 QuantuMike Digimatic Micrometer IP65 SPC Data Output 25.4-50.8mm (1-2″)”

There are no reviews yet.

Data Sheet

Download

Mitutoyo 293-181-40
