Product Detailed Description:
Designed for batch or mass production measurements in manufacturing and quality assurance.

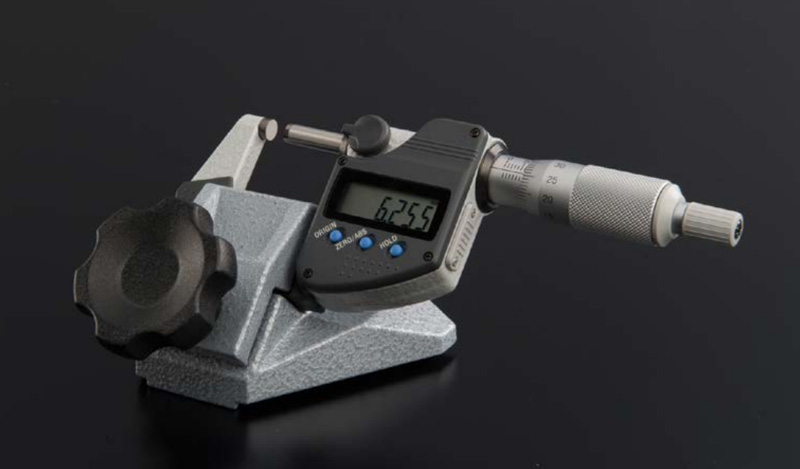

- Designed to allow bench top use with hand micrometers or other Gages
- Fixed angle Type
- Recommended micrometer ranges 0-2 inch
-13%
Micrometer, Test, Measure & Inspect

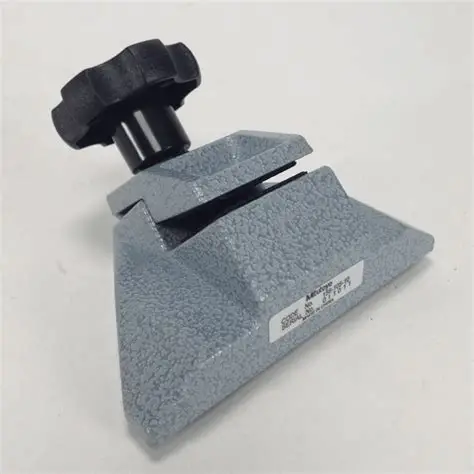

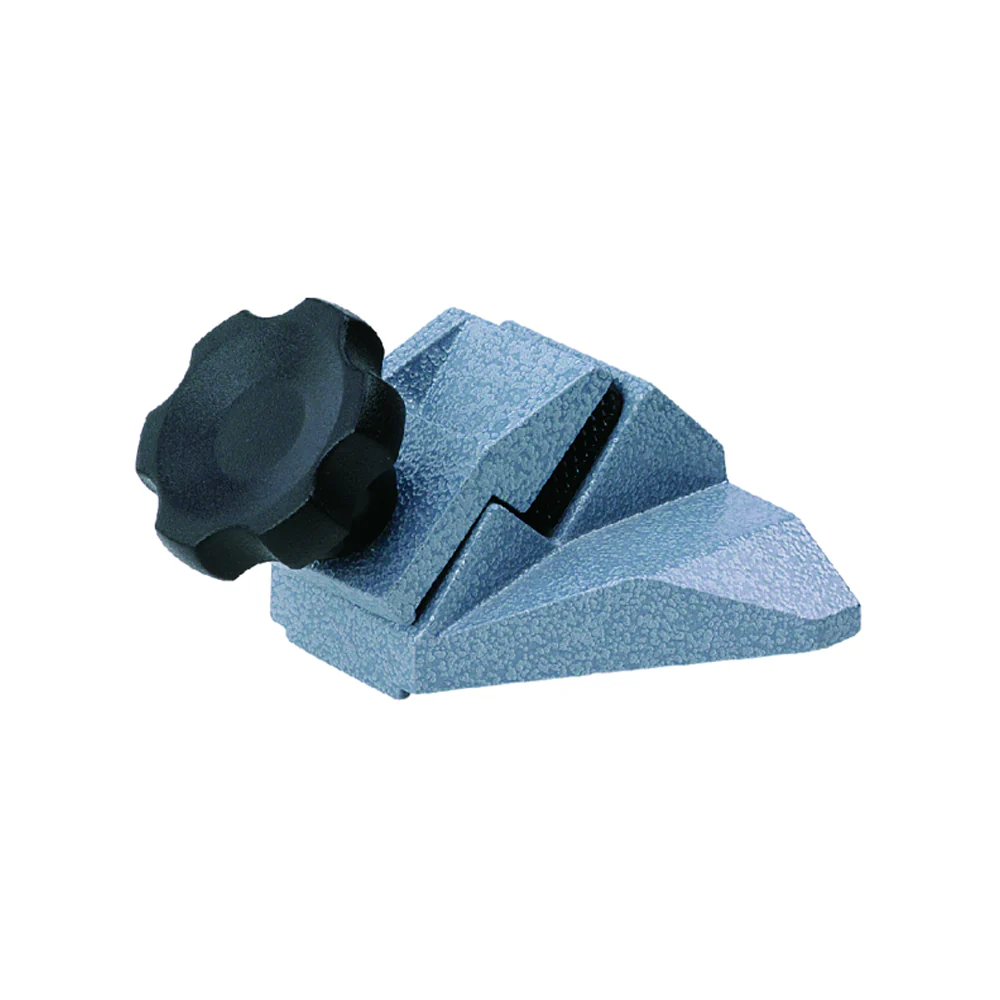

Mitutoyo 156-105-10 Micrometer Stand for Micrometer 0-50mm / 0-2″
Micrometer Stand Features:
- Model No: Mitutoyo 156-105-10
- Angle Fixed Type
- Designed for micrometers up to 50mm
- Ranges: Up to 2″/50mm
- Application: Bench-top measuring
₹3,980.00 ₹4,580.00 Inc GST

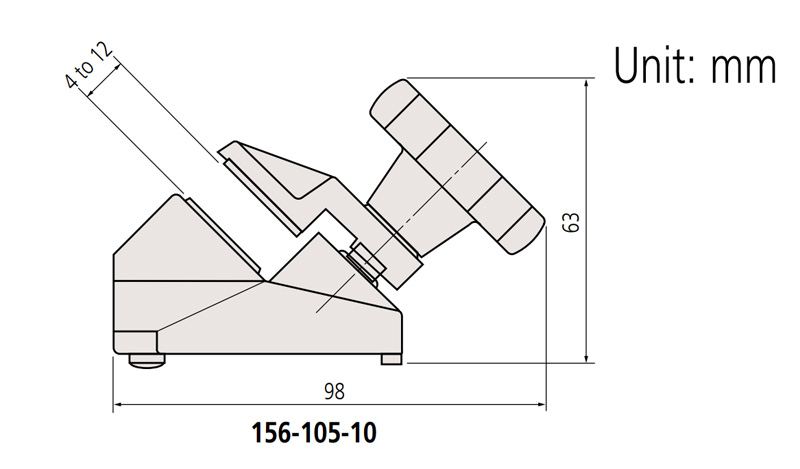

Technical Specifications:
- Type: Fixed Angle
- Range: Suits Micrometers 0-2″ / 0-50mm
- Remarks: Fixed angle type 45°
- Weight : 700g Approx.
- Brand: Mitutoyo
Based on 0 reviews
Be the first to review “Mitutoyo 156-105-10 Micrometer Stand for Micrometer 0-50mm / 0-2″”
