Detailed Description
The DS2208 corded scanner adds the benefits of essential 2D imaging at an outstanding value to businesses with minimal investment.

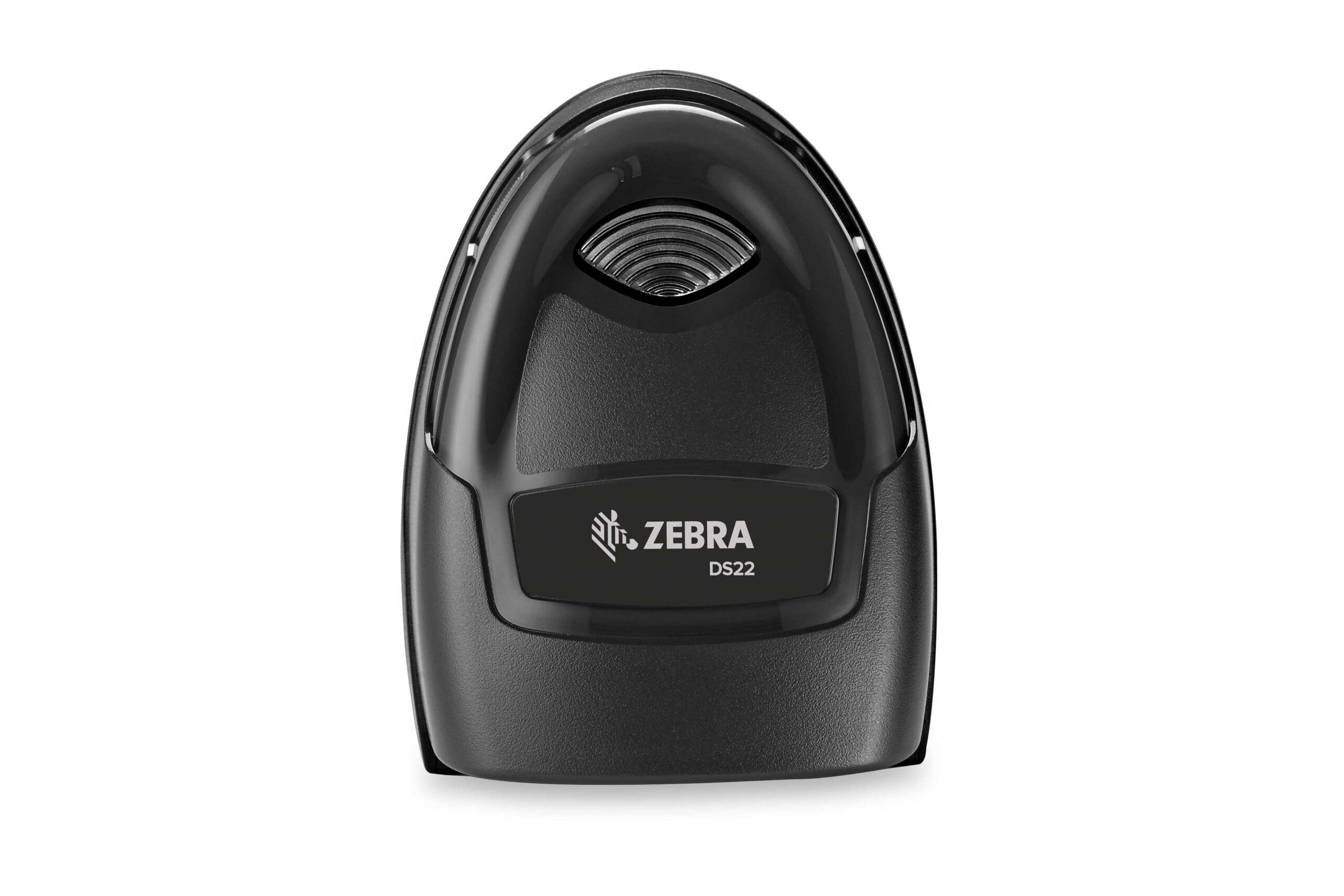

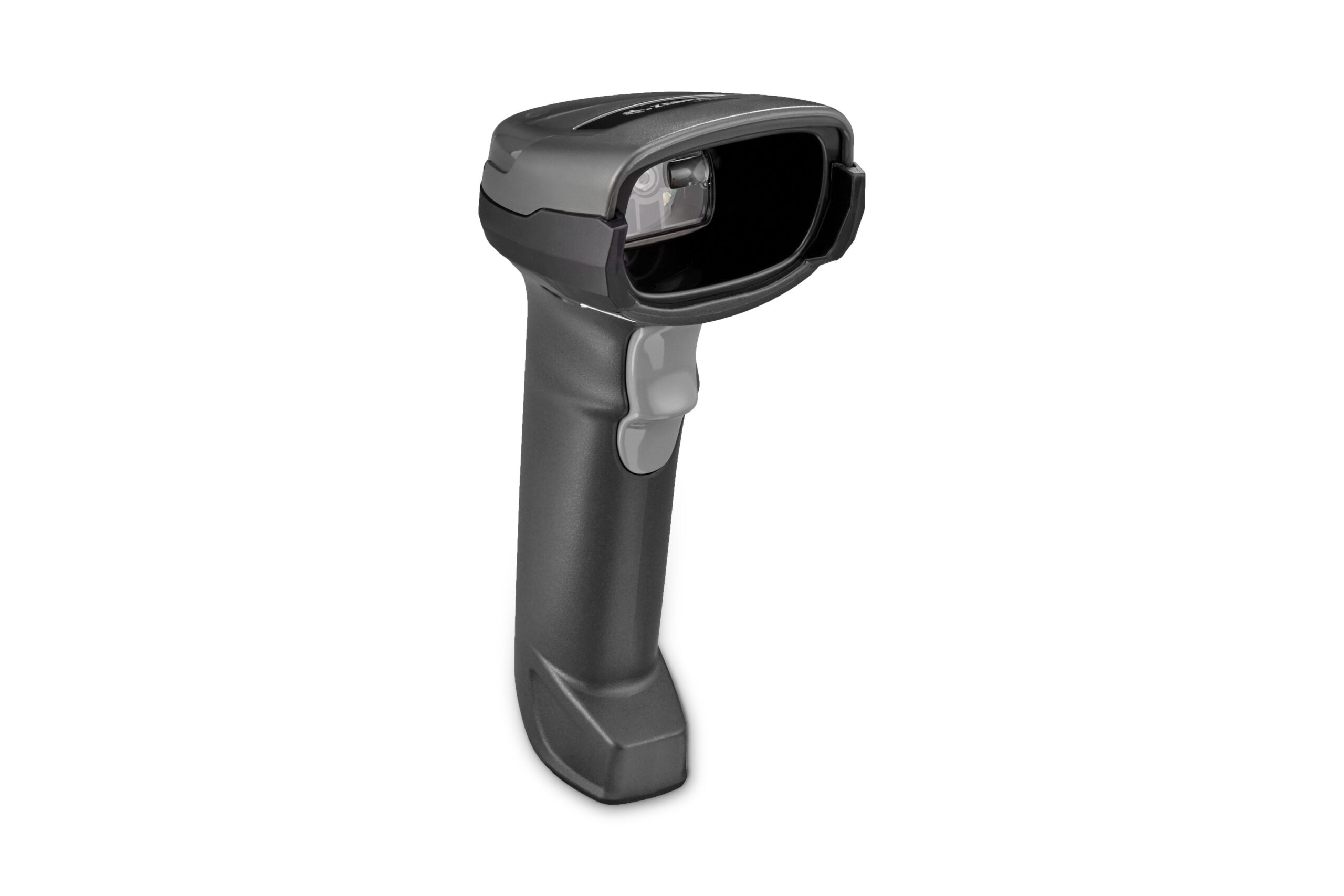

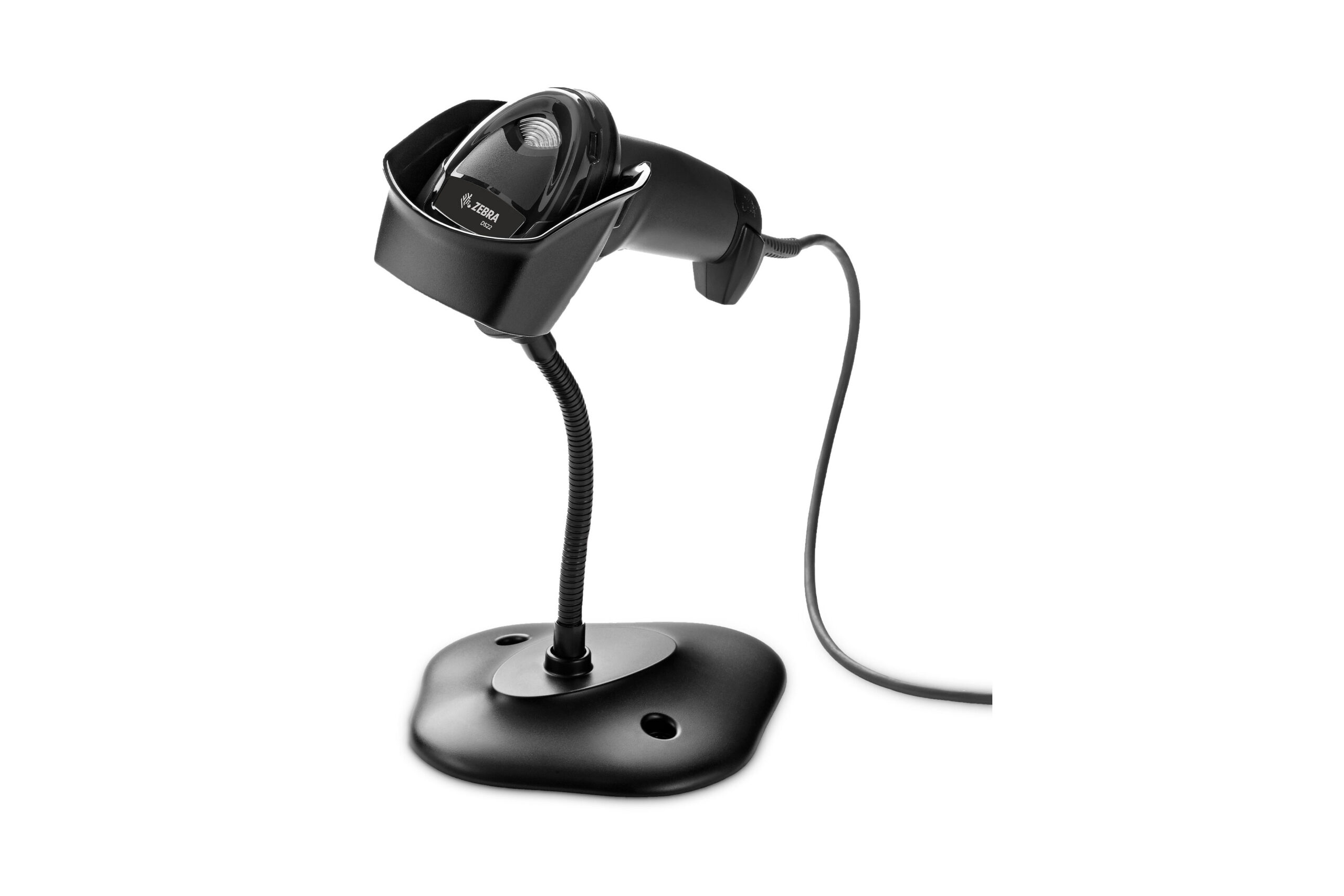

The Zebra DS2208 1D Wired Barcode Scanner is a versatile and highly efficient scanning solution designed for environments requiring precision and speed. This scanner is ideal for industries like retail, healthcare, and logistics, providing rapid and accurate decoding of 1D barcodes.
Easy to Deploy
Pre-configured and ready to use, right out of the box
Since the default settings are optimized for the majority of scanning applications, you can use the DS2200 Series imager the moment you take it out of the box — no configuration required.
Auto-host detect cables
Just plug the DS2200 Series into your Point of Sale (POS) and the auto-host detect cables will automatically identify the interface and connect the imager, simplifying and reducing setup time.
The DS2208 offers all the features you need to add high-quality scanning to your tablet-based POS. The Micro USB cable provides a low-cost charging alternative to a cradle. And with our simplified app development tools, you can easily configure and update the DS2200 Series right from the tablet.
It can scan barcodes across a wide range (0.5 inches to 14.5 inches), improving checkout speed and reducing training time.
The illumination on the barcode flashes to indicate a good decode, so workers know instantly if the barcode was captured correctly regardless of how noisy the environment might be.
It is easy to plug into your Point of Sale (POS) and the auto-host detect cables will automatically identify the interface and connect the imager, simplifying and reducing setup time.
Specifications:
| Product Type | Scanner |
| Light Source | Aiming Pattern: Linear 624nm Amber LED |
| Swipe Speed | Up to 30.0 in per second for 13 mil UPC |
| Min Print Contrast | 25% minimum reflective difference |
| Roll Tolerance | 0-360° |
| Pitch Tolerance | ± 65° |
| Skew Tolerance | ± 65° |
| Interface | USB, RS232, Keyboard Wedge, TGCS (IBM), 46XX over RS485 |
| Color | Twilight Black, Nova White |
| Dimensions | 6.5 x 2.6 x 3.9 inch |
| Voltage | 4.5 to 5.5 VDC |
| Current | 250 mA (typical) |
| Power Source | Host power or external power supply |
| Decode Capability | PDF417, Composite Codes, TLC-39, Aztec, Data Matrix, Maxi Code, QR Code, Micro QR, Han Xin, Postal Codes |
| Operating Temp | 0° to 50° C |
| Weight | 161.6 g |
| Warranty | 5 Years |
