Description

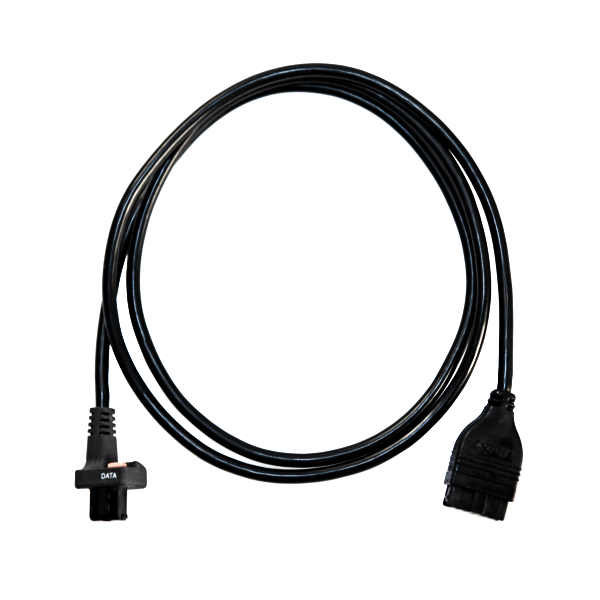

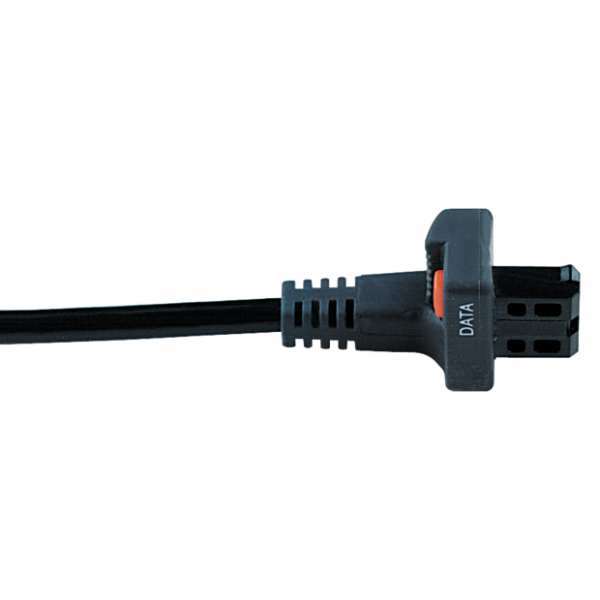

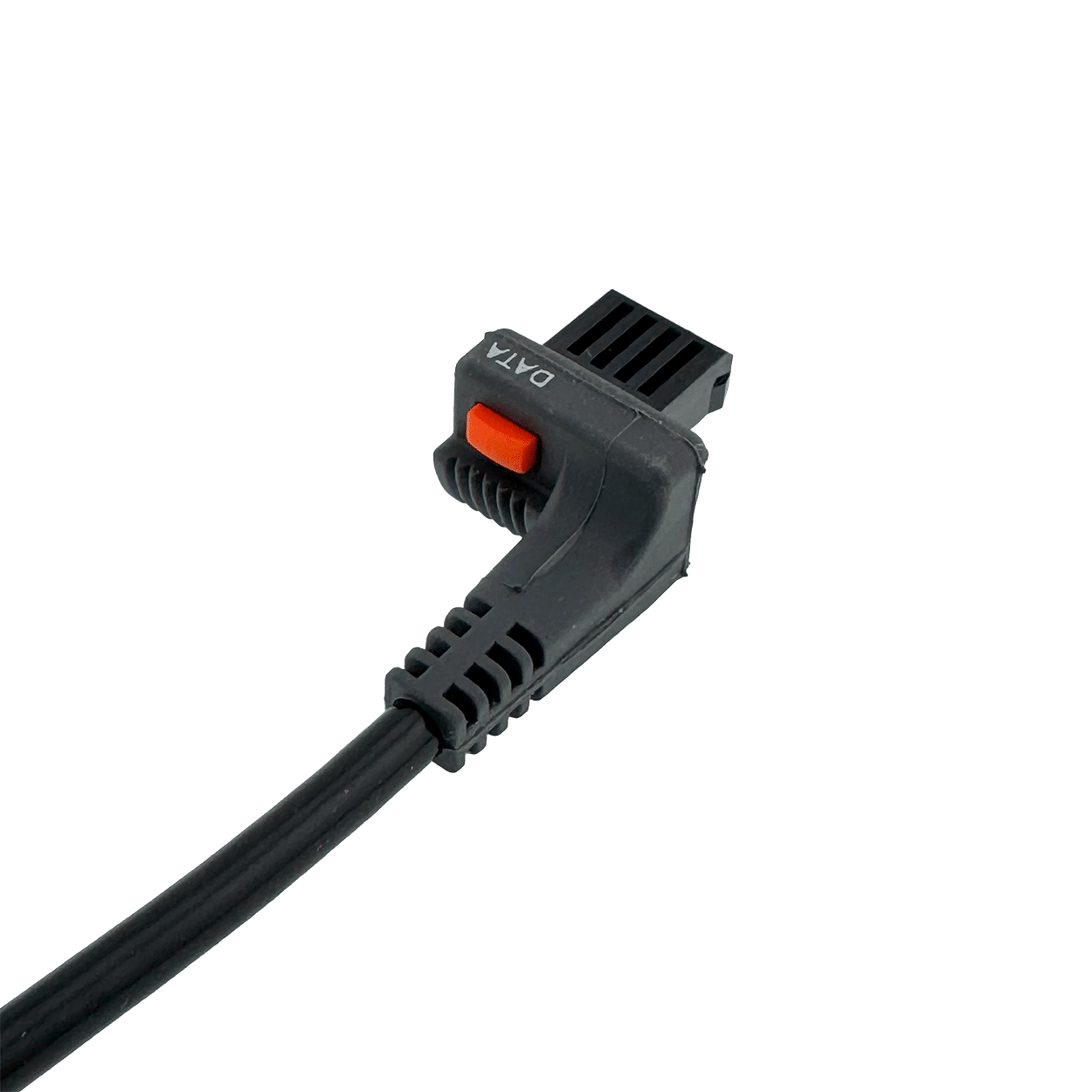

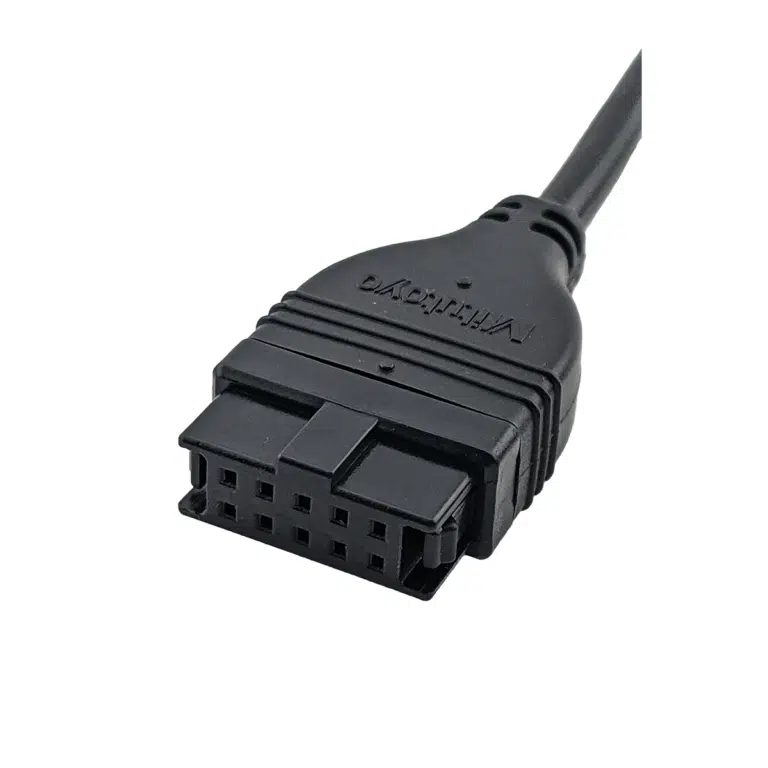

A cable to connect the measuring devices directly via USB (USB Input Tool Direct Cables), indirectly via standard Digimatic cables and interface box (e.g. DMX box or USB Input Tool Box), or the U-WAVE-T wireless transmitters (box version) to a PC.
The 959149 is compatible with the Type C Digimatic SPC port found across a range of Mitutoyo instrument families:

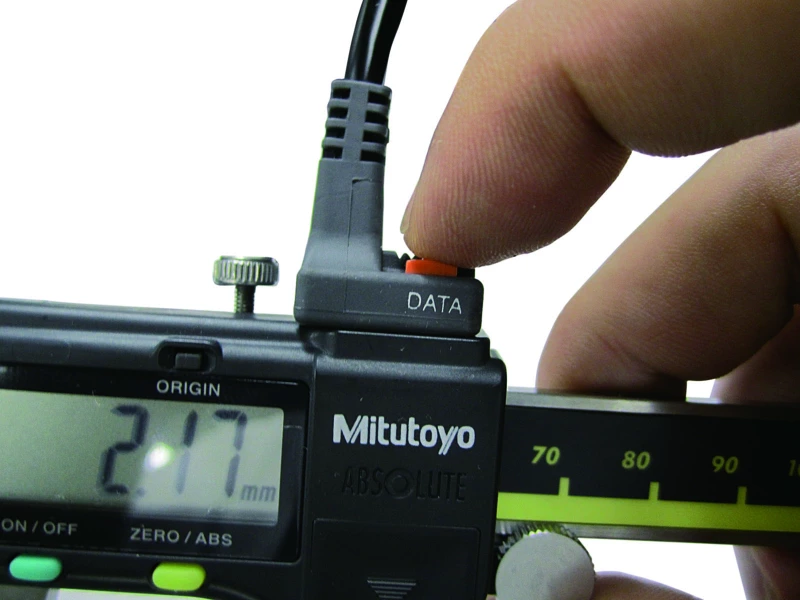

- Series 500 Absolute Digimatic Calipers (500-170-32, 500-171-32, 500-172-32 and others)
- Series 571 Digimatic Depth Gages
- Series 572 Digimatic Linear Scales
Not sure if your gage uses the 959149 / Type C connector? Contact us at info@vimkan.com
