-20%
Test, Measure & Inspect, Vernier Caliper

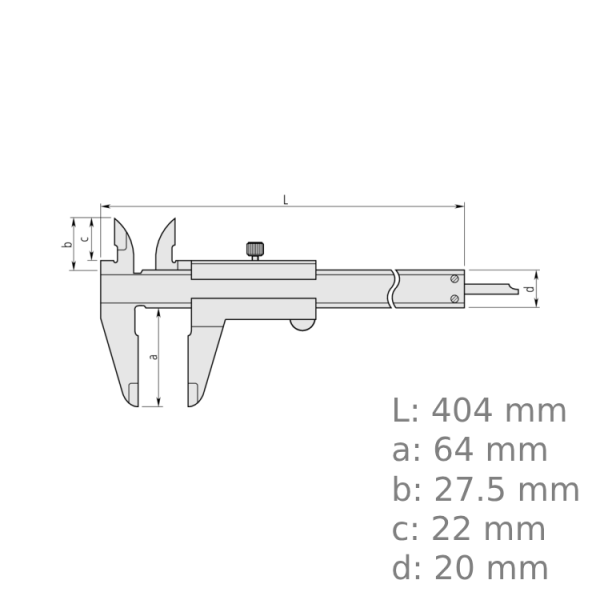

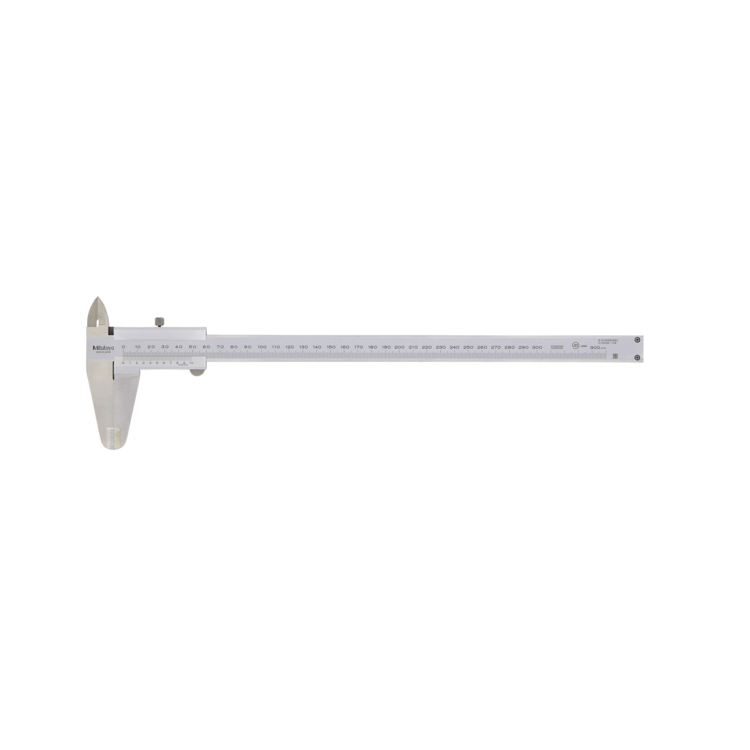

Mitutoyo 530-124 (0.02mm) Vernier Caliper 0-300mm
$94.87 $118.87
Related products
-
Test, Measure & Inspect, Vernier Caliper
Mitutoyo 500-752-20 Absolute Digimatic IP67 Caliper 0-150mm,0-6″ inch
Test, Measure & Inspect, Vernier CaliperMitutoyo 500-752-20 Absolute Digimatic IP67 Caliper 0-150mm,0-6″ inch
Detailed Description
The 500-752-20 Coolant-Proof Digimatic Caliper delivers accurate and repeatable inside, outside, depth, and step measurements with accuracy and unrestricted speed in an ergonomic design. The caliper’s slide and jaws are constructed of hardened stainless steel and provide an impact-resistant, easy-to-ready LCD display for durable, reliable use. The ABSOLUTE caliper can be used in workshop conditions exposed to coolant, water, dust and oil.
SKU: n/a -
Micrometer, Test, Measure & Inspect
Mitutoyo 293-230-30 Digimatic Micrometer Metric IP65 SPC Data Output Ratchet Stop 0-25mm
Micrometer, Test, Measure & InspectMitutoyo 293-230-30 Digimatic Micrometer Metric IP65 SPC Data Output Ratchet Stop 0-25mm
Micrometer Features:
- Resolution: 0.001mm
- Accuracy: ± 0.001mm
- Flatness: 0.0003mm
- Parallelism: 0.001mm
- IP65 Protected: Waterproof (coolant & dust resistant)
- Carbide measuring faces, micro lap finish
- Ratchet Stop
- With SPC data output
- Thimble and Sleeve scale
- Metric only
- Measuring Spindle: 6.35mm diameter, spindle pitch 0.5mm
- MPN: 293-230-30
- Brand: Mitutoyo
SKU: Mitutoyo 293-230-30 -
Test, Measure & Inspect, Vernier Caliper
Mitutoyo 530-119 (0.02mm) High Accuracy Vernier Caliper 0-300mm (0-12″)
Test, Measure & Inspect, Vernier CaliperMitutoyo 530-119 (0.02mm) High Accuracy Vernier Caliper 0-300mm (0-12″)
Vernier Caliper Features:
- Range: 0-300mm (0-12″)
- Resolution: 0.02mm
- Accuracy: ± 0.04mm
- Jaw length: 64mm
- Depth Bar: Flat
- High accuracy model
- Inch/metric
- MPN: 530-119
- Brand: Mitutoyo
SKU: n/a -
Test, Measure & Inspect
Mitutoyo – Universal Protractor 150/300mm Blade – 187-901
A Mitutoyo precision protractor for making accurate angle measurements. The angle between the stock and blade can be set and read to 5‰Ûª resolution with the aid of the built-in magnifier. Can be attached to a height gauge for surface plate work.
Features
Inch-Metric: Metric Graduation: 5 ‘ (0° – 90° – 0°) Blade edge angle: 60°, 45°, 30° edges Blade length: 150, 300 mm Delivered: In a box with acute angle attachment, holder for height gauge, magnifier Mass: 390 g SKU: Mitutoyo 187-901
