-35%
Test, Measure & Inspect, Vernier Caliper

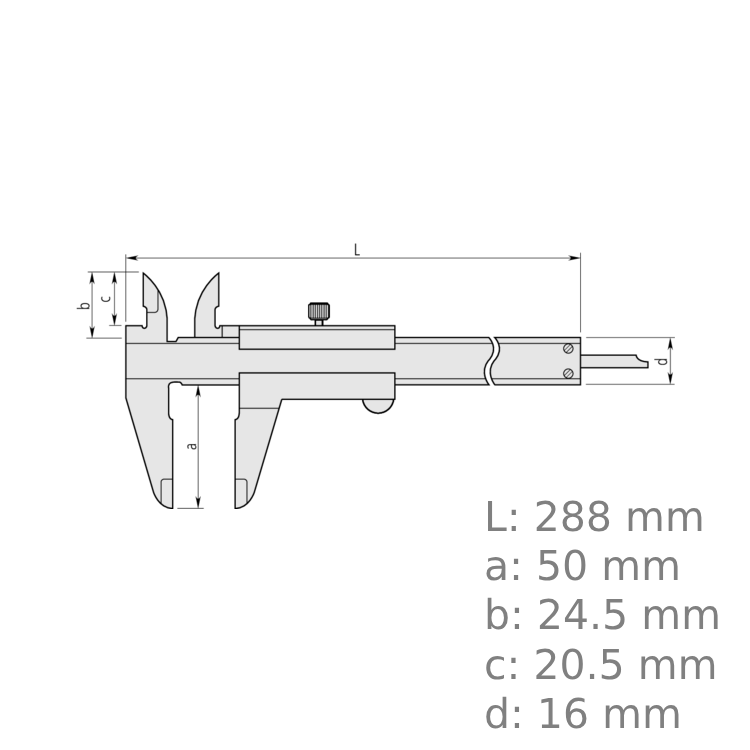

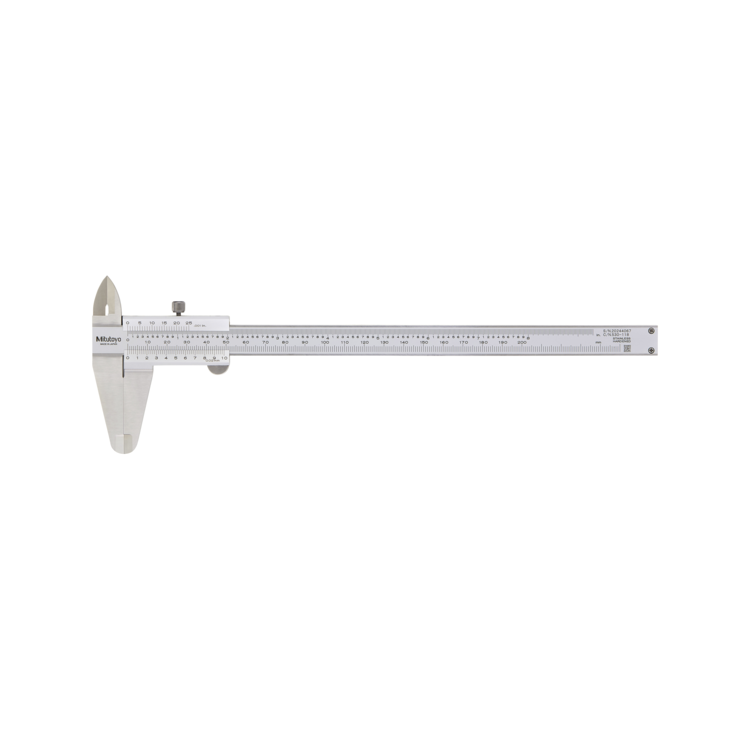

Mitutoyo 530-118 (0.02mm) Vernier Caliper 0-200mm (0-8″)
Caliper Features:
- Range: 0-200mm (0-8″)
- Resolution: 0.02mm (0.001″)
- Accuracy: ± 0.03mm (0.001″)
- Jaw length: 50mm
- Depth bar: flat
- Inch/Metric (dual scale)
- MPN: 530-118
- Brand: Mitutoyo
$37.61 $57.84 Inc GST
