Description
A standard type of small size micrometer heads with a zero-adjustable thimble. They offer the following benefits:
- You can make a zero-setting at any position by loosening the setscrew in the thimble.
-10%
Measuring Instruments, Micrometer

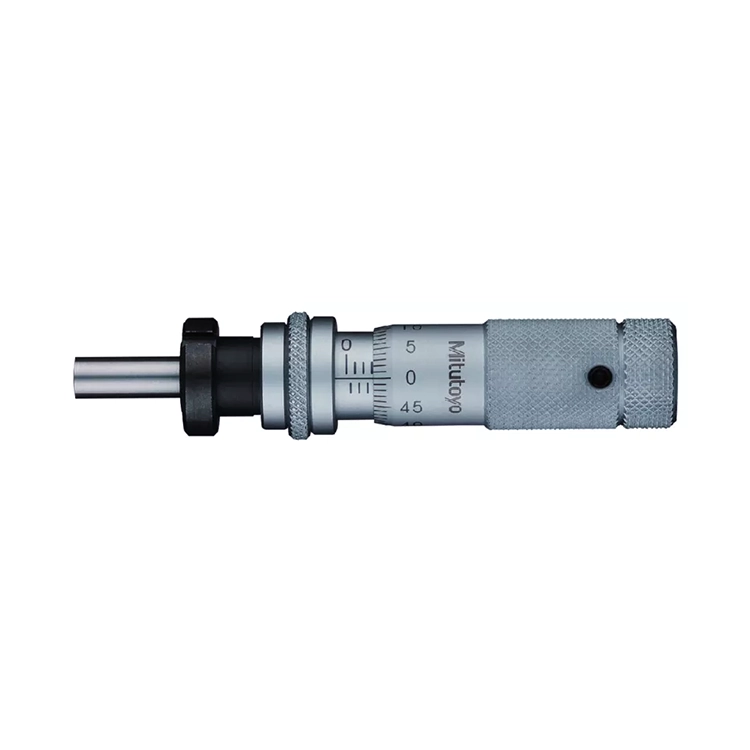

Mitutoyo 148-504 (0.01mm) Zero Adjustable Micrometer Head with Spindle Lock Clamp Nut Flat Spindle 0-13mm
Micrometer Head Features:
- Brand: Mitutoyo (Made in Japan)
- Range: 0-13mm
- Resolution: 0.01mm
- Accuracy: ± 0.002mm
- Stem: Spindle lock, Clamp nut, Ø 9.5mm
- Spindle: Flat
- Spindle Pitch: 0.5mm
- Hardened steel measuring face
- Metric
$36.88 $40.96 Inc GST
Specifications:
| Brand | Mitutoyo |
|---|---|
| Range | 0-15mm |
| Resolution | 0.01mm |
| Product | Micrometer Heads |
| Model | Standard |
| Display | Mechanical (Analogue) |
| Unit | mm (Mechanical) |
| Code | 148-504 |
| Origin | Japan |
