Mitutoyo 137-204 Extension Tube Inside Micrometer 50-1000mm,Graduation 0.01mm
Mitutoyo 137-204 Extension Tube Inside Micrometer 50-1000mm,Graduation 0.01mm - Image 2
,

Mitutoyo 137-204 Extension Tube Inside Micrometer 50-1000mm,Graduation 0.01mm

Compare

Micrometer Features:



  • Brand: Mitutoyo( Made in Japan)
  • Range: 50-1000mm
  • Main unit range: 50-63mm
  • Resolution: 0.01mm
  • Micrometer head stroke: 13mm
  • Accuracy: ± (3+n+L/50) μm* / ±(0.00015+0.00005n+0.00005 (L/2))”   n = number of tubes, L = maximum measuring length (mm)

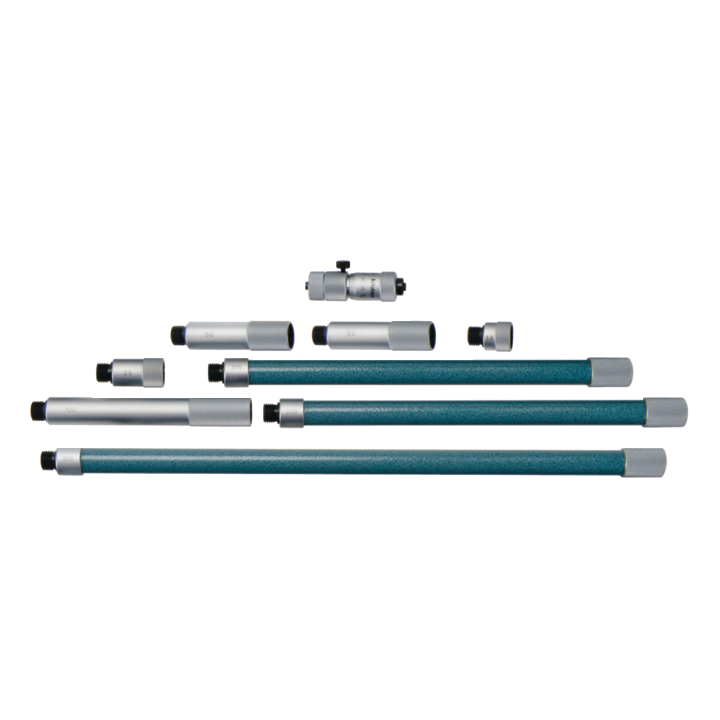

  • Extension rods: 8 (13, 25, 50(x2), 100, 200(x2) 300mm)
  • Measuring spindle: Spindle pitch 0.5 mm
  • Spindle feed error: 0.003mm
  • Measuring face: Hardened steel
  • Measuring method: 2-point
  • Analogue
  • Metric

$197.96 $263.69 Inc GST

Compare

Description

This is an extension rod type inside micrometer that offers you the following benefits:

  • Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range
  • The sleeve is rotated to adjust the index line position when setting to a length standard
  • Setting rings available as an additional accessory



Simple Contact Form
Name

SKU: Mitutoyo 137-204 Categories: , Brand:

Specifications :



Brand Mitutoyo
Range 0-1000mm
Resolution 0.01mm
Product Bore Gauges, Micrometers
Model Stick/Tubular, Internal
Display Mechanical (Analogue)
Unit  mm (Mechanical)
Code 137-204
Origin Japan

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Mitutoyo 137-204 Extension Tube Inside Micrometer 50-1000mm,Graduation 0.01mm”

There are no reviews yet.

Data Sheet

Download

Mitutoyo 137-204
