Description:
Lightweight workshop design with baked-enamel-finished frame featuring:
- Equipped with Ratchet Stop for constant measuring force.
- Reliable and Efficient.
-16%
Measuring Instruments, Micrometer

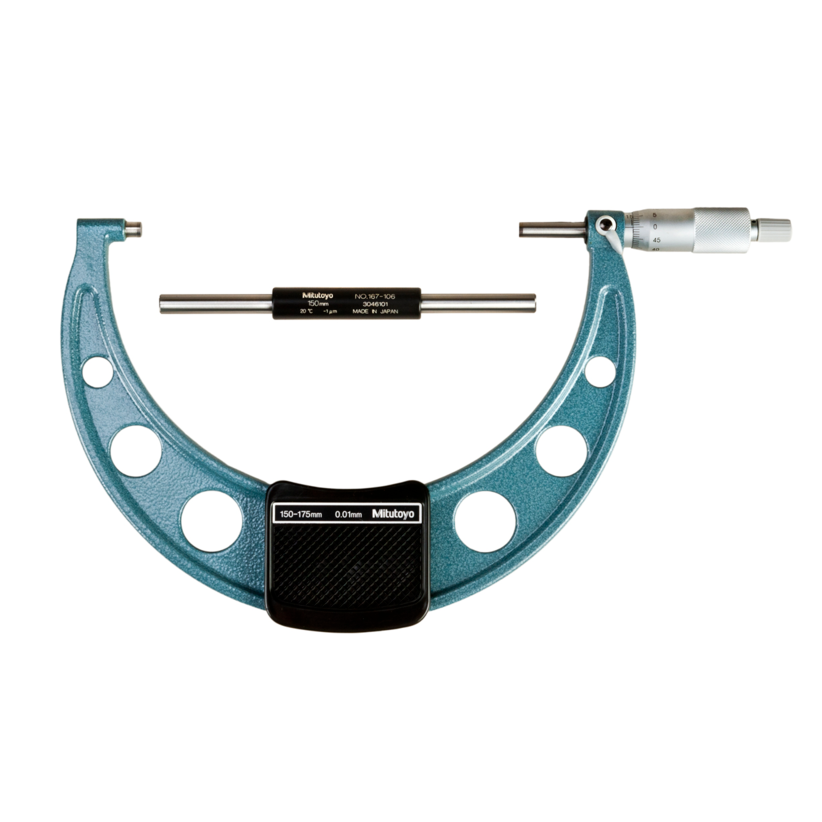

Mitutoyo 103-143-10 (0.01mm) Ratchet Stop Micrometer 150-175mm
Micrometer Features:
- Brand: Mitutoyo (Made in Japan)
- Range: 150-175mm
- Resolution: 0.01mm
- Accuracy: ± 0.004mm
- Flatness: 0.0006mm
- Parallelism: (2+R/100) μm – R = max range
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped, micro-lap finish

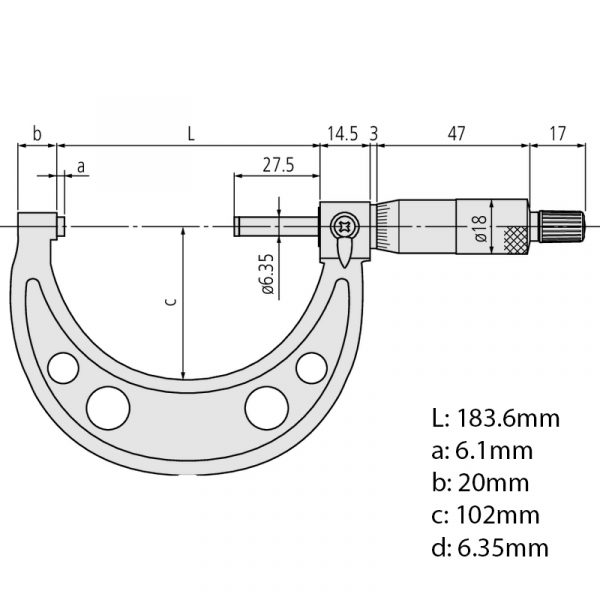

- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Metric
$81.19 $96.87 Inc GST
Specifications:
| Brand | Mitutoyo |
|---|---|
| Display | Mechanical (Analogue) |
| Model | Standard |
| Product | Micrometers |
| Resolution | 0.01mm |
| Range | 150-175mm |
| code | 103-143-10 |
| Origin | Japan |
| Unit | mm (Mechanical) |
Based on 0 reviews
Be the first to review “Mitutoyo 103-143-10 (0.01mm) Ratchet Stop Micrometer 150-175mm”
