Micrometer
Showing 1–24 of 78 results
-
Micrometer, Test, Measure & Inspect

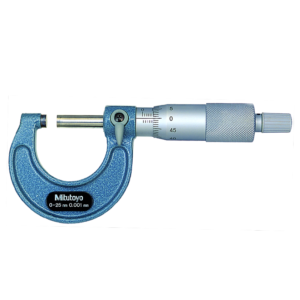

Mitutoyo 103-129 (0.001mm) Ratchet Stop Economy Design Micrometer 0-25mm
-12%
Micrometer, Test, Measure & InspectMitutoyo 103-129 (0.001mm) Ratchet Stop Economy Design Micrometer 0-25mm
Basic Features:
- Model No: Mitutoyo 103-129
- Range: 0-25mm
- Resolution: 0.001mm
- Accuracy: ± 0.002mm
- Parallelism: (2+L/100) μm, L = max. range (mm)
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Metric
SKU: n/a -
Micrometer, Test, Measure & Inspect
Mitutoyo 103-130 (0.001mm) Ratchet Stop Economy Design Micrometer 25-50mm
-34%
Micrometer, Test, Measure & InspectMitutoyo 103-130 (0.001mm) Ratchet Stop Economy Design Micrometer 25-50mm
Micrometer Features:
- Range: 25-50mm
- Resolution: 0.001mm
- Accuracy: ± 0.002mm
- Flatness: 0.0006mm
- Parallelism: (2+R/100) μm – R = max range
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Metric
- MPN: 103-130
- Brand: Mitutoyo
SKU: Mitutoyo 103-130 -
Micrometer, Test, Measure & Inspect
Mitutoyo 103-136 (0.0001″) Micrometer Friction Thimble 1-2″
Micrometer Features:
- Model No: Mitutoyo 103-136
- Range: 1-2″
- Resolution: 0.0001″
- Accuracy: ±0,0001″
- Parallelism: 0.00008″
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm)
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Imperial
SKU: Mitutoyo 103-136 -
Micrometer, Test, Measure & Inspect

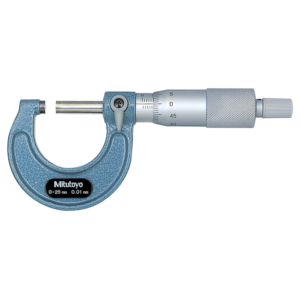

Mitutoyo 103-137 (0.01mm) Ratchet Stop Economy Design Micrometer 0-25mm
-12%
Micrometer, Test, Measure & InspectMitutoyo 103-137 (0.01mm) Ratchet Stop Economy Design Micrometer 0-25mm
Basic Features:
- Model No: Mitutoyo 103-137
- Range: 0-25mm
- Resolution: 0.01mm
- Accuracy: ± 0.002mm
- Parallelism: (2+R/100) μm – R = max range
- Flatness: 0.0006mm
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Metric
SKU: n/a -
Micrometer, Test, Measure & Inspect

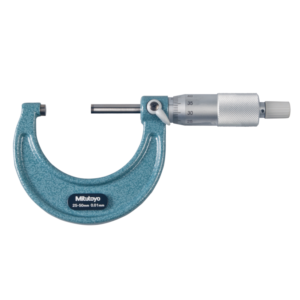

Mitutoyo 103-138 (0.01mm) Ratchet Stop Economy Design Micrometer 25-50mm
-12%
Micrometer, Test, Measure & InspectMitutoyo 103-138 (0.01mm) Ratchet Stop Economy Design Micrometer 25-50mm
Basic Features:
- Model No: Mitutoyo 103-138
- Range: 25-50mm
- Resolution: 0.01mm
- Accuracy: ± 0.002mm
- Flatness: 0.0006mm
- Parallelism: (2+R/100) μm – R = max range
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Metric
SKU: n/a -
Micrometer, Test, Measure & Inspect
Mitutoyo 103-140-10 (0.01mm) Ratchet Stop Economy Design Micrometer 75-100mm
-16%
Micrometer, Test, Measure & InspectMitutoyo 103-140-10 (0.01mm) Ratchet Stop Economy Design Micrometer 75-100mm
Basic Features:
- Model No: Mitutoyo 103-140-10
- Range: 75-100mm
- Resolution: 0.01mm
- Accuracy: ± 0.003mm
- Flatness: 0.0006mm
- Parallelism: (2+R/100) μm – R = max range
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Metric
SKU: n/a -
Micrometer, Test, Measure & Inspect

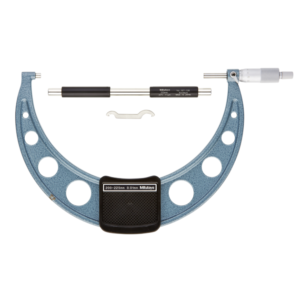

Mitutoyo 103-145-10 (0.01mm) outside Micrometer 200-225mm, Ratchet Stop Feature
-20%
Micrometer, Test, Measure & InspectMitutoyo 103-145-10 (0.01mm) outside Micrometer 200-225mm, Ratchet Stop Feature
Basic Features:
- Model No: Mitutoyo 103-145-10
- Range: 200-225mm
- Resolution: 0.01mm
- Accuracy: ± 0.004mm
- Flatness: 0.0006mm
- Parallelism: (2+R/100) μm – R = max range
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Metric
SKU: n/a -
Micrometer, Test, Measure & Inspect

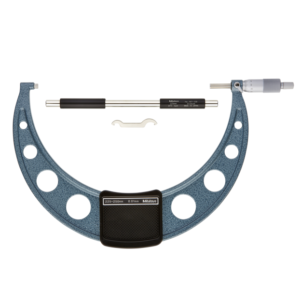

Mitutoyo 103-146-10 (0.01mm) Outside Micrometer 225-250mm, Ratchet Stop Feature
-18%
Micrometer, Test, Measure & InspectMitutoyo 103-146-10 (0.01mm) Outside Micrometer 225-250mm, Ratchet Stop Feature
Basic Features:
- Model No: Mitutoyo 103-146-10
- Range: 225-250mm
- Resolution: 0.01mm
- Accuracy: ± 0.005mm
- Flatness: 0.0006mm
- Parallelism: (2+R/100) μm – R = max range
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Metric
SKU: n/a -
Micrometer, Test, Measure & Inspect

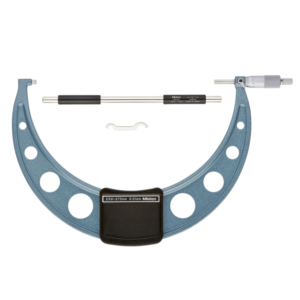

Mitutoyo 103-147-10 Outside Micrometer with Ratchet Stop 250-275mm
-20%
Micrometer, Test, Measure & InspectMitutoyo 103-147-10 Outside Micrometer with Ratchet Stop 250-275mm
Basic Features:
- Model No: Mitutoyo
- Range: 250-275mm
- Resolution: 0.01mm
- Accuracy: ± 0.005mm
- Flatness: 0.0006mm
- Parallelism: (2+R/100) μm – R = max range
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Metric
- MPN: 103-147-10
- Brand: Mitutoyo
SKU: n/a -
Micrometer, Test, Measure & Inspect
Mitutoyo 103-148-10 (0.01mm) Ratchet Stop Micrometer 275-300mm
-14%
Micrometer, Test, Measure & InspectMitutoyo 103-148-10 (0.01mm) Ratchet Stop Micrometer 275-300mm
Micrometer Features:
- Model No: Mitutoyo 103-148-10
- Range: 275-300mm
- Resolution: 0.01mm
- Accuracy: ± 0.005mm
- Flatness: 0.0006mm
- Parallelism: (2+R/100) μm – R = max range
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Metric
SKU: Mitutoyo 103-148-10 -
Micrometer, Test, Measure & Inspect
Mitutoyo 103-149 (0.01mm) Ratchet Stop Micrometer 300-325mm
Micrometer Features:
- Model No: Mitutoyo 103-149
- Range: 300-325mm
- Resolution: 0.01mm
- Accuracy: ± 0.006mm
- Flatness: 0.0006mm
- Parallelism: (2+R/100) μm – R = max range
- Measuring Force: 10-15N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Metric
SKU: Mitutoyo 103-149 -
Micrometer, Test, Measure & Inspect
Mitutoyo 103-156 (0.01mm) Ratchet Stop Economy Design Micrometer 475-500mm
-18%
Micrometer, Test, Measure & InspectMitutoyo 103-156 (0.01mm) Ratchet Stop Economy Design Micrometer 475-500mm
Micrometer Features:
- Model No: Mitutoyo 103-156
- Range: 475-500mm
- Resolution: 0.01mm
- Accuracy: ± 0.008mm
- Flatness: 0.001mm
- Parallelism: (2+R/100) μm – R = max range
- Measuring Force: 10-15N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Metric
SKU: Mitutoyo 103-156 -
Micrometer, Test, Measure & Inspect
Mitutoyo 103-157 (0.01mm) Ratchet Stop Economy Design Micrometer 500-525mm
-19%
Micrometer, Test, Measure & InspectMitutoyo 103-157 (0.01mm) Ratchet Stop Economy Design Micrometer 500-525mm
Micrometer Features:
- Model No: Mitutoyo 103-157
- Range: 500-525mm
- Resolution: 0.01mm
- Accuracy: ± 0.008mm
- Flatness: 0.001mm
- Parallelism: (2+R/100) μm – R = max range
- Measuring Force: 10-15N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Metric
SKU: n/a -
Micrometer, Test, Measure & Inspect
Mitutoyo 103-177 (0.001″) Ratchet Stop Economy Design Micrometer 0-1″
-40%
Micrometer, Test, Measure & InspectMitutoyo 103-177 (0.001″) Ratchet Stop Economy Design Micrometer 0-1″
Micrometer Features:
- Range: 0-1″
- Resolution: 0.001″
- Accuracy: ± 0.0001″
- Parallelism: [0.00008+0.00004(L/4)]”, L = max. range (inch)
- Flatness: 0.000024″
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Inch
- MPN: 103-177
- Brand: Mitutoyo
SKU: Mitutoyo 103-177 -
Micrometer, Test, Measure & Inspect
Mitutoyo 103-178 (0.001″) Ratchet Stop Micrometer 1-2″
Micrometer Features:
- Model No: Mitutoyo 103-178
- Range: 1-2″
- Resolution: 0.001″
- Accuracy: ± 0.0001″
- Parallelism: [0.00008+0.00004(L/4)]”, L = max. range (inch)
- Flatness: 0.000024″
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Inch
SKU: Mitutoyo 103-178 -
Micrometer, Test, Measure & Inspect

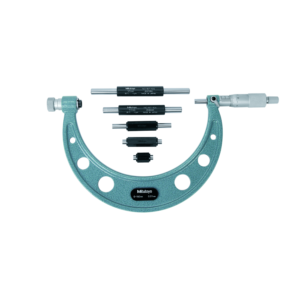

Mitutoyo 104-135A Outside Micrometer Interchangeable Anvil, 0 to 150 mm
-17%
Micrometer, Test, Measure & InspectMitutoyo 104-135A Outside Micrometer Interchangeable Anvil, 0 to 150 mm
Basic Features:
- Model No: Mitutoyo 104-135A
- Range: 0-150mm
- Resolution: 0.01mm
- Parallelism: 0.003mm
- Flatness: 0.0006mm
- Measuring force: 5-10N
- Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
- Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.5mm
- Spindle feed error: 0.003mm
- Interchangeable anvils: 6
- Setting standard: 5 (25, 50, 75, 100, 125mm)
- Scale: Thimble and sleeve satin chrome finish, ø18 mm
- Ratchet stop
- Analogue
- Metric
SKU: n/a -
Micrometer, Test, Measure & Inspect
Mitutoyo 104-136A (0.01mm) Analogue Micrometer Interchangeable Anvil 150-300mm
-14%
Micrometer, Test, Measure & InspectMitutoyo 104-136A (0.01mm) Analogue Micrometer Interchangeable Anvil 150-300mm
Basic Features:
- Range: 150-300mm
- Resolution: 0.01mm
- Parallelism: 0.002mm
- Flatness: 0.0006mm
- Measuring force: 5-10N
- Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
- Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.5mm
- Spindle feed error: 0.003mm
- Interchangeable anvils: 6
- Setting standard: 6 (100, 125, 150, 175, 200, 225mm)
- Scale: Thimble and sleeve satin chrome finish, ø18 mm
- Ratchet stop
- Analogue
- Metric
- Model No: Mitutoyo 104-136A
SKU: n/a -
Micrometer, Test, Measure & Inspect
Mitutoyo 104-138 (0.001″) Outside Micrometer Interchangeable Anvil 6-12″
-23%
Micrometer, Test, Measure & InspectMitutoyo 104-138 (0.001″) Outside Micrometer Interchangeable Anvil 6-12″
Micrometer Features:
- Model No: Mitutoyo 104-138
- Range: 6-12″
- Resolution: 0.001″
- Measuring force: 5-10N
- Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
- Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.5mm
- Spindle feed error: 0.00015″
- Interchangeable anvils: 6
- Setting standard: 6 (6, 7, 8, 9, 10, 11″)
- Scale: Thimble and sleeve satin chrome finish, ø18 mm
- Ratchet stop
- Analogue
- Inch
SKU: Mitutoyo 104-138 -
Micrometer, Test, Measure & Inspect

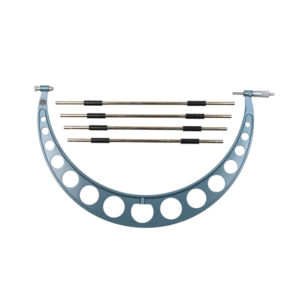

Mitutoyo 104-144A (0.01mm) Outside Micrometer Interchangeable Anvil 500-600mm
-7%
Micrometer, Test, Measure & InspectMitutoyo 104-144A (0.01mm) Outside Micrometer Interchangeable Anvil 500-600mm
Basic Features:
- Model No: Mitutoyo 104-144A
- Range: 500-600mm
- Resolution: 0.01mm
- Parallelism: 0.007mm
- Flatness: 0.001mm
- Measuring force: 5-10N
- Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
- Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.5mm
- Spindle feed error: 0.003mm
- Interchangeable anvils: 4
- Setting standard: 4 (500, 525, 550, 575mm)
- Scale: Thimble and sleeve satin chrome finish, ø18 mm
- Friction thimble
- Analogue
- Metric
SKU: n/a -
Micrometer, Test, Measure & Inspect

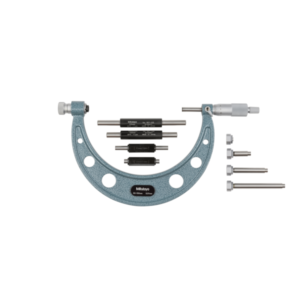

Mitutoyo 104-161A (0.01mm) Analogue Micrometer Interchangeable Anvil 50-150mm
-18%
Micrometer, Test, Measure & InspectMitutoyo 104-161A (0.01mm) Analogue Micrometer Interchangeable Anvil 50-150mm
Micrometer Features:
- Model No: Mitutoyo 104-161A
- Range: 50-150mm
- Resolution: 0.01mm
- Parallelism: 0.003mm
- Flatness: 0.0006mm
- Measuring force: 5-10N
- Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
- Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.5mm
- Spindle feed error: 0.003mm
- Interchangeable anvils: 4
- Setting standard: 5 (25, 50, 75, 100, 125mm)
- Scale: Thimble and sleeve satin chrome finish, ø18 mm
- Ratchet stop
- Analogue
- Metric
SKU: Mitutoyo 104-161A -
Micrometer, Test, Measure & Inspect
Mitutoyo 104-161A Outside Micrometer Interchangeable Anvil, 50 to 150 mm
-12%
Micrometer, Test, Measure & InspectMitutoyo 104-161A Outside Micrometer Interchangeable Anvil, 50 to 150 mm
Micrometer Features:
- Model No: Mitutoyo 104-161A
- Range: 50-150mm
- Resolution: 0.01mm
- Parallelism: 0.003mm
- Flatness: 0.0006mm
- Measuring force: 5-10N
- Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
- Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.5mm
- Spindle feed error: 0.003mm
- Interchangeable anvils: 4
- Setting standard: 5 (25, 50, 75, 100, 125mm)
- Scale: Thimble and sleeve satin chrome finish, ø18 mm
- Ratchet stop
- Analogue
- Metric
SKU: n/a -
Micrometer, Test, Measure & Inspect
Mitutoyo 104-171 (0.01mm) Analogue Micrometer Interchangeable Anvil 0-50mm
-18%
Micrometer, Test, Measure & InspectMitutoyo 104-171 (0.01mm) Analogue Micrometer Interchangeable Anvil 0-50mm
Micrometer Features:
- Model No: Mitutoyo 104-171
- Range: 0-50mm
- Resolution: 0.01mm
- Parallelism: 0.002mm
- Flatness: 0.0006mm
- Measuring force: 5-10N
- Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
- Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.635mm
- Spindle feed error: 0.003mm
- Interchangeable anvils: 1
- Setting standard: 1 (25mm)
- Scale: Thimble and sleeve satin chrome finish, ø18 mm
- Analogue
- Metric
SKU: Mitutoyo 104-171
