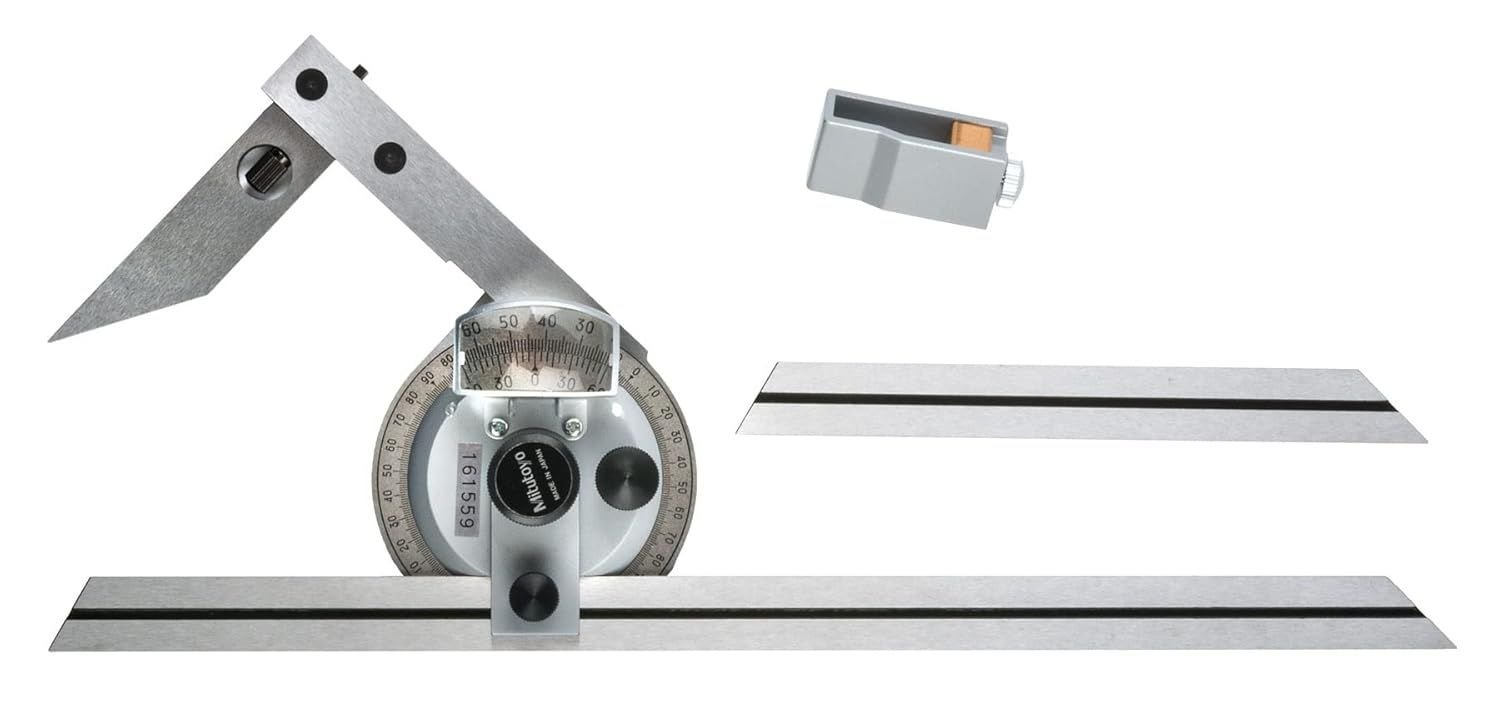

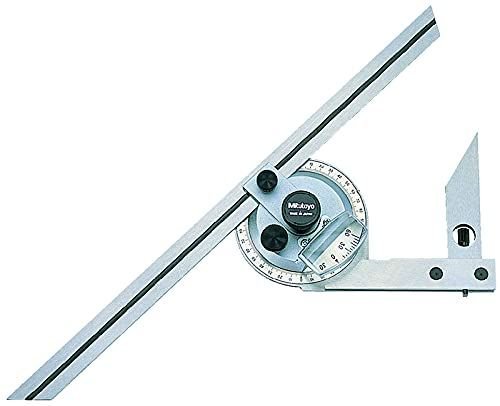

Mitutoyo – Universal Protractor 150/300mm Blade – 187-901
A Mitutoyo precision protractor for making accurate angle measurements. The angle between the stock and blade can be set and read to 5‰Ûª resolution with the aid of the built-in magnifier. Can be attached to a height gauge for surface plate work.
Features
| Inch-Metric: | Metric |
| Graduation: | 5 ‘ (0° – 90° – 0°) |
| Blade edge angle: | 60°, 45°, 30° edges |
| Blade length: | 150, 300 mm |
| Delivered: | In a box with acute angle attachment, holder for height gauge, magnifier |
| Mass: | 390 g |
$173.33 $202.08
