Detailed Description
This Mitutoyo Dial Indicator Thickness Gauge enables you to measure tube wall thickness, film/paper etc. with flat contact points, resp. lens thickness or groove depth.
-16%
Dial Indicator, Test, Measure & Inspect

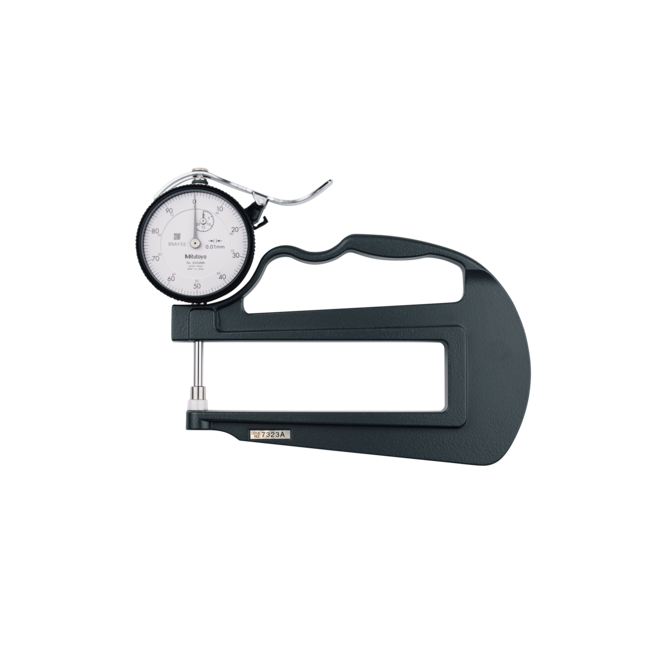

Mitutoyo 7323A (0.01mm) Deep Throat Dial Indicator Thickness Gauge 0-20mm
Basic Features
- Model No: Mitutoyo 7323A
- Range: 0-20mm
- Resolution: 0.01mm
- Accuracy: ± 0.022mm
- Parallelism: 0.005mm
- Measuring force: 2N or less

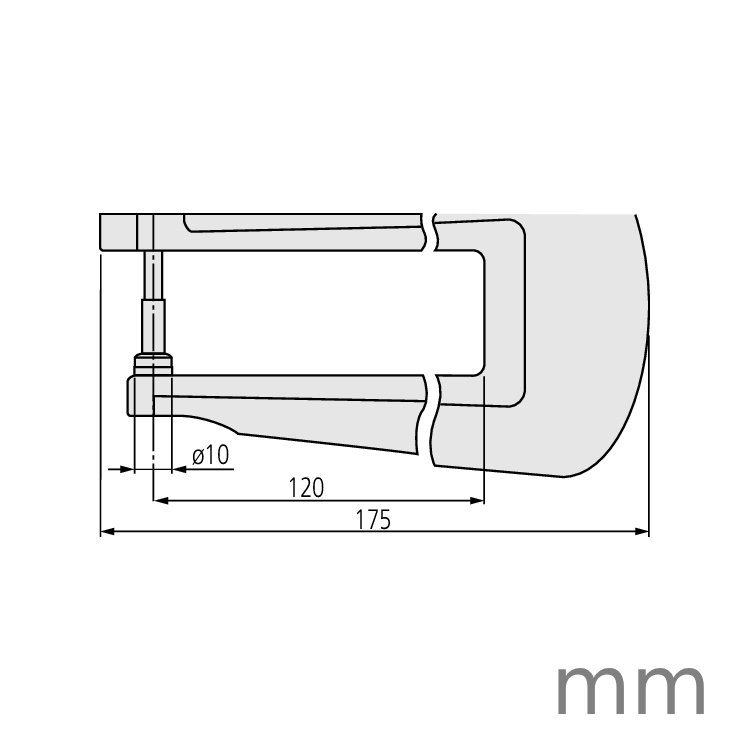

- Max measuring depth: 120mm
- Contact point: Ceramic disc, M 2.5 x 0.45 mm
- Metric
- MPN: 7323A
$104.54 $124.08
Based on 0 reviews
Be the first to review “Mitutoyo 7323A (0.01mm) Deep Throat Dial Indicator Thickness Gauge 0-20mm”
