Detailed Description
- This Mitutoyo ABSOLUTE Digimatic Thickness Gauge enables you to measure tube wall thickness.
- Specially Designed for measuring the thickness of pipes and curved boards
- SPC Data Output – YES
-21%
Dial Indicator, Test, Measure & Inspect

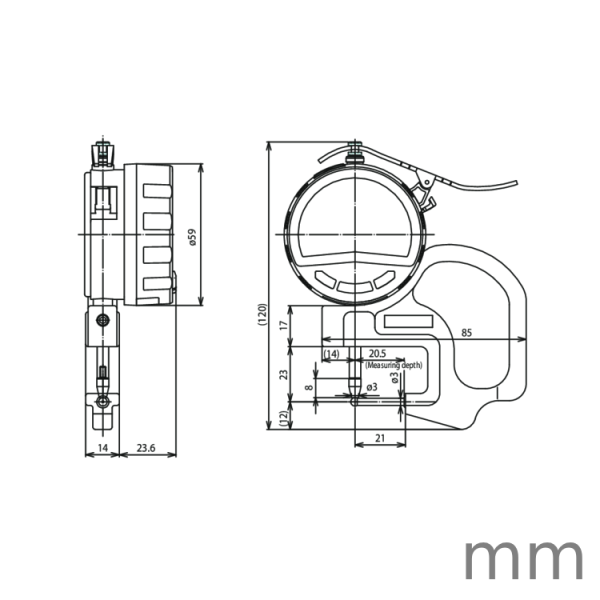

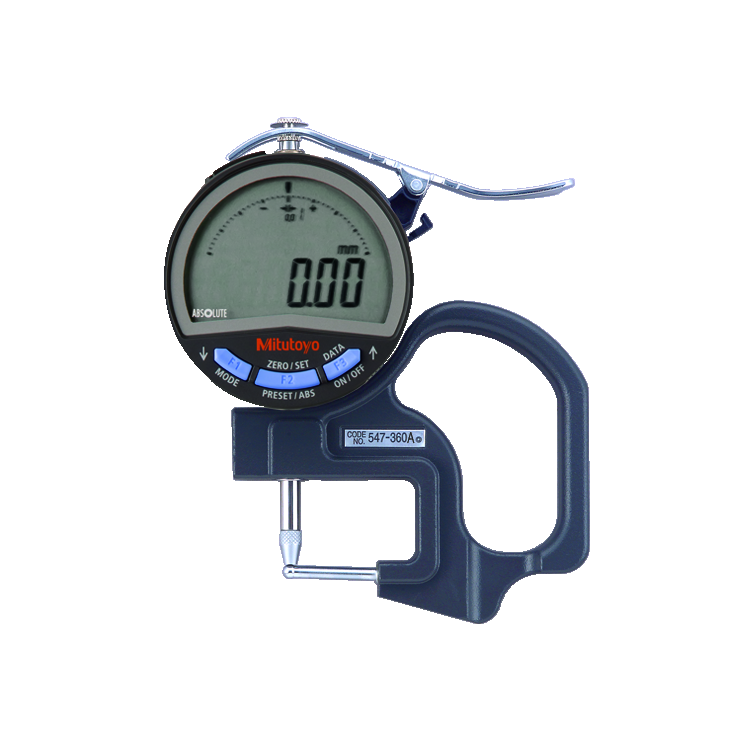

Mitutoyo 547-360A (0.01mm) ABSOLUTE Pipe Gauge Digital Thickness Gauge 0-10mm
Basic Features
- Model No: Mitutoyo 547-360A
- Range:0-10mm
- Resolution: 0.01mm
- Accuracy: ± 0.01mm
- Measuring force: 1.5N or less
- Max measuring depth: 20.5mm
- SPC data output – YES
- Scale: Capacitance type ABSOLUTE linear encoder
- Switchable counting direction
- Metric
₹27,580.00 ₹35,120.00 Inc GST
Based on 0 reviews
Be the first to review “Mitutoyo 547-360A (0.01mm) ABSOLUTE Pipe Gauge Digital Thickness Gauge 0-10mm”
