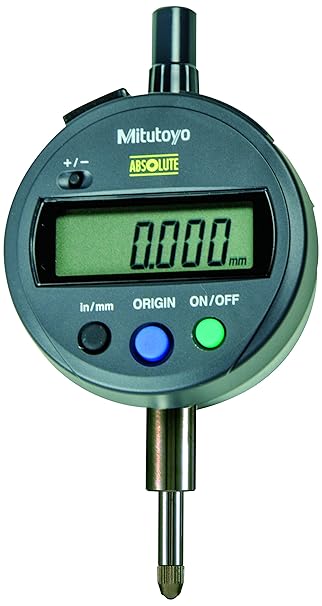

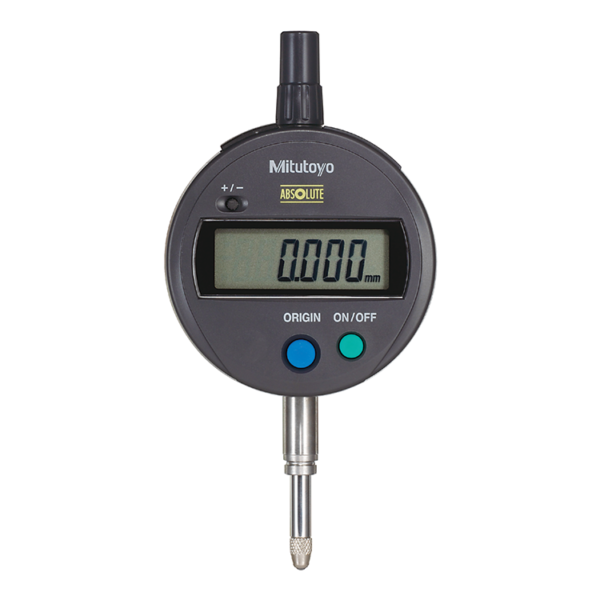

Mitutoyo 543-790-10 (0.001mm) IP42 Lug Back Digital Indicator ID-S 0-12.7mm
Mitutoyo 543-790-10 (0.001mm) IP42 Lug Back Digital Indicator ID-S 0-12.7mm - Image 2
Mitutoyo 543-790-10 (0.001mm) IP42 Lug Back Digital Indicator ID-S 0-12.7mm - Image 3
Mitutoyo 543-790-10 (0.001mm) IP42 Lug Back Digital Indicator ID-S 0-12.7mm - Image 4
Mitutoyo 543-790-10 (0.001mm) IP42 Lug Back Digital Indicator ID-S 0-12.7mm - Image 5
,

Mitutoyo 543-790-10 (0.001mm) IP42 Lug Back Digital Indicator ID-S 0-12.7mm

Compare

Detailed Description

543-790-10 MITUTOYO Simple Design Absolute Digimatic Indicator: 0-12.7mm

The Mitutoyo 543-790-10 Simple Design Absolute Digimatic Indicator has the following specifications:

  • Range: 12.7mm
  • Resolution: 0.001mm
  • Model: ID-S112X
  • Accuracy: 0.003mm
  • Measuring force: 1.5N or less

Features:

  • As compact as standard Series 2 dial indicators.
  • After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over the entire battery life.
  • Employing the ABSOLUTE linear encoder, the ID-S always displays the spindle “Absolute Position” from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
  • SPC data output- YES

$281.91 $302.18

Compare

Basic Features:

  • Range: 0-12.7mm
  • Resolution: 0.001mm
  • Accuracy: ± 0.003mm
  • Hysteresis: 0.002mm
  • Repeatability: 0.002mm
  • Measuring Force: 1.5N or less
  • Stem diameter: 8mm
  • Contact point: Carbide ball, thread: M 2.5 x 0.45 mm
  • Scale: Capacitance type, ABSOLUTE linear encoder
  • IP Rating: IP42

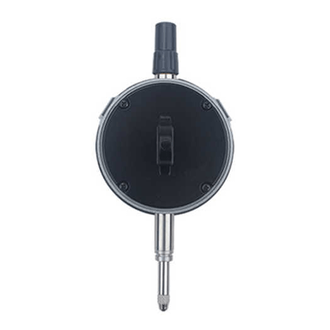

  • Lug back
  • Data output- YES
  • Metric
  • MPN: 543-790-10
  • Brand: Mitutoyo
