-49%
Test, Measure & Inspect, Vernier Caliper

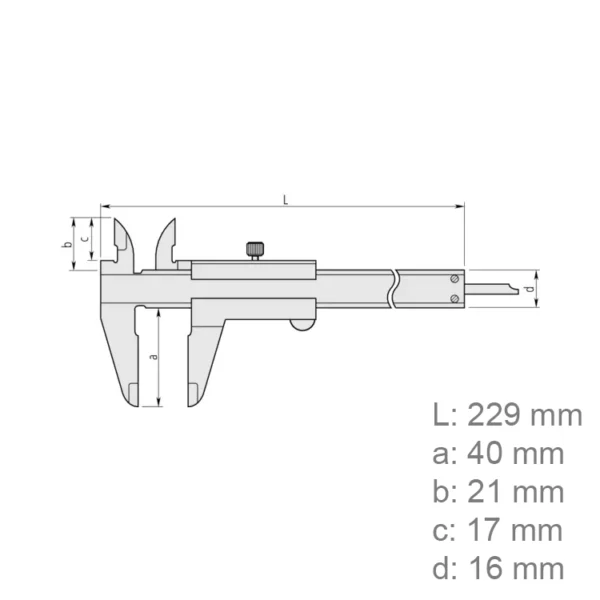

Mitutoyo 530-104 (0.05mm) Vernier Caliper 0-150mm (0-6″)
Vernier Caliper Features:
- Range: 0-150mm (0-6″)
- Resolution: 0.05mm
- Accuracy: ± 0.5mm
- Jaw length: 40mm
- Depth Bar: Flat
- Inch/metric
- MPN: 530-104
- Brand: Mitutoyo
$42.20 $83.20
Related products
-
Dial Indicator, Test, Measure & Inspect
Mitutoyo 513-515T Dial Test Indicator – Set
Basic Features
- Graduation: 0.01mm
- Dial Reading: 0-50-0
- Type: Full Set
- Accuracy: 10um
- Measuring force: 0.3N or less
- Contact Point Length:44.5mm
- Long Contact Point Type: N
- Jeweled Bearing Type: N
- Compact Type: Y
SKU: n/a -
Dial Indicator, Test, Measure & Inspect
Mitutoyo 2046A (0.01mm) Lug Back Shockproof Dial Indicator 0-10mm
Dial Indicator, Test, Measure & InspectMitutoyo 2046A (0.01mm) Lug Back Shockproof Dial Indicator 0-10mm
Indicator Features:
- Range: 0-10mm
- Resolution: 0.01mm
- Accuracy: ± 0.013mm
- Accuracy 1/10 rev: 0.005mm
- Accuracy 1 rev: 0.010mm
- Repeatability: 0.003mm
- Measuring Force: 1.4N or less
- Carbide tipped, thread: M 2.5 x 0.45 mm
- MPN: 2046A-09
- Brand: Mitutoyo
SKU: Mitutoyo 2046 -
Micrometer, Test, Measure & Inspect
Mitutoyo 293-831-30 Digital Micrometer 0-25mm (0-1″)
Detailed Description
This Standard Digimatic Micrometer is an affordable device that offers the following benefits:
- It is cost-effective with simplified functionality for standard applications.
- Increased operability thanks to easy-to-read LCD with 30% more character display area than previous model
- Extraordinary battery life of approx. 2.4 years.
- Equipped with Friction Thimble for constant measuring force.
- No Data Output- No Output
Other Details
215g lightweight construction
Tungsten carbide tipped measuring faces
Accuracy ± 2μm
Imperial or metric reading
Large LCD displaySupplied with
Batteries, instruction manual and storage case.
Micrometers – Digital
Digital Electronic LCD Display micrometers, for workshop or maintenance use.
SKU: n/a -
Micrometer, Test, Measure & Inspect
Mitutoyo 103-130 (0.001mm) Ratchet Stop Economy Design Micrometer 25-50mm
Micrometer, Test, Measure & InspectMitutoyo 103-130 (0.001mm) Ratchet Stop Economy Design Micrometer 25-50mm
Micrometer Features:
- Range: 25-50mm
- Resolution: 0.001mm
- Accuracy: ± 0.002mm
- Flatness: 0.0006mm
- Parallelism: (2+R/100) μm – R = max range
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Metric
- MPN: 103-130
- Brand: Mitutoyo
SKU: Mitutoyo 103-130
