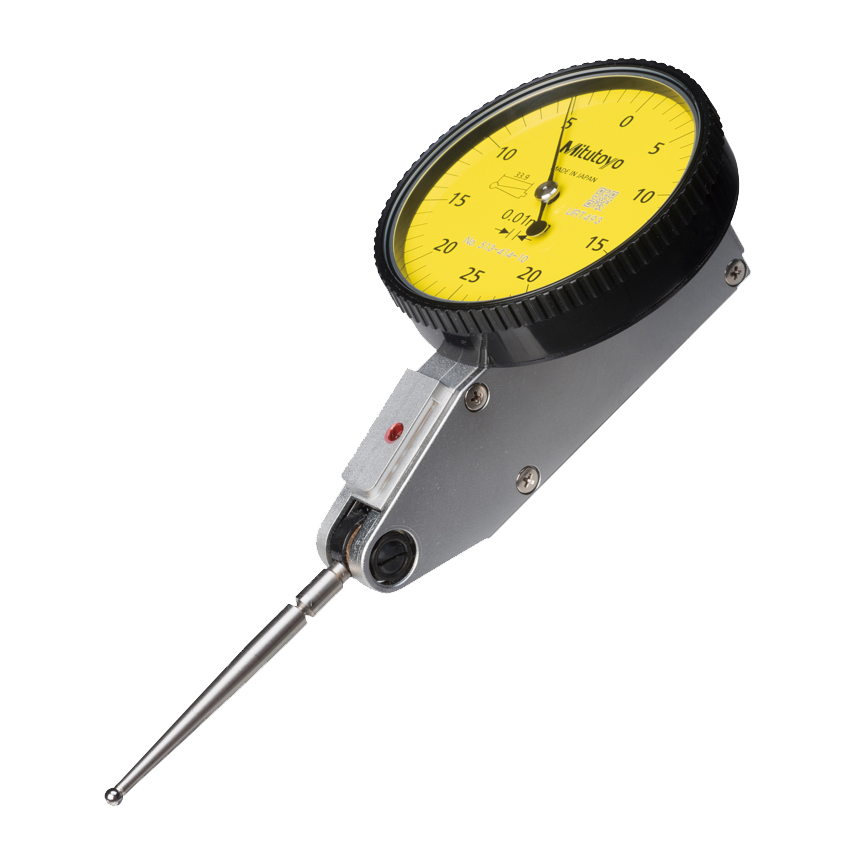

Mitutoyo 513-414-10E (0.01mm) Horizontal Type Dial Test Indicator 0.5mm


Product Basic Features:

  • Model No: Mitutoyo 513-414-10E
  • Range: 0.5mm
  • Resolution: 0.01mm
  • Accuracy: ± 0.010mm
  • MPE any 10 scale divisions: ±0.005mm
  • MPE Measuring range: 0.010mm
  • Hysteresis: 0.004mm
  • Repeatability: 0.003mm
  • Scale: 0-25-0
  • Measuring Force: 0.2N or less
  • Contact Point: Thread M 1.7 x 0.35 mm
  • MPN: 513-414-10E
  • Brand: Mitutoyo

$79.00 $94.94

Compare

Product Detailed Description:

This is a Dial Test Indicator (Lever Type) which offers you the following benefits:

  • Drastically enhanced durability, sensitivity and visibility.
  • Glare-free flat crystal face allows easy reading of graduations.
  • O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
  • The stylus length is on the dial face to reorder a replacement
  • Multi-layer coatings on the crystal

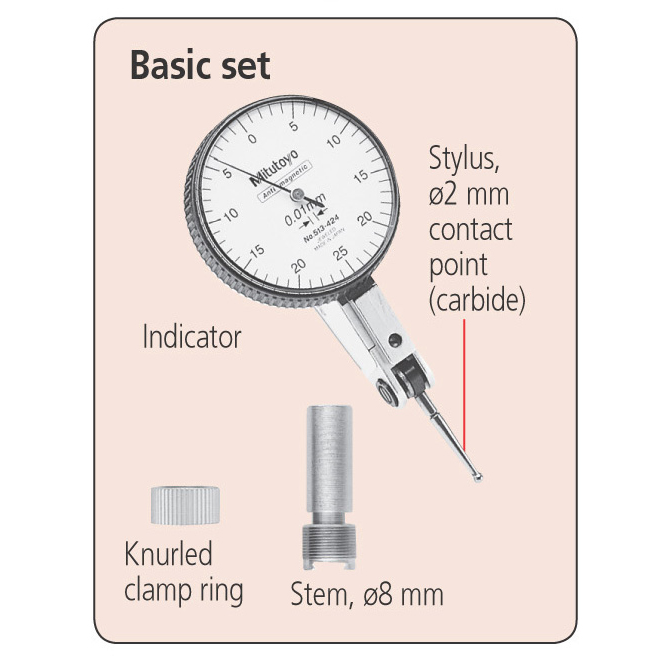

Basic Set includes:

  • Knurled clamp ring
  • 8mm stem diameter
  • Stylus 2mm diameter carbide contact point

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Mitutoyo 513-414-10E (0.01mm) Horizontal Type Dial Test Indicator 0.5mm”

There are no reviews yet.

Data Sheet

Download

Mitutoyo 513-414-10E
