Mitutoyo 511-435-20 Blind Hole Bore Gauge 2 Point Inside Measurement Instrument 15-35mm
Mitutoyo 511-435-20 Blind Hole Bore Gauge 2 Point Inside Measurement Instrument 15-35mm - Image 2
Mitutoyo 511-435-20 Blind Hole Bore Gauge 2 Point Inside Measurement Instrument 15-35mm - Image 3
Mitutoyo 511-435-20 Blind Hole Bore Gauge 2 Point Inside Measurement Instrument 15-35mm - Image 4
Mitutoyo 511-435-20 Blind Hole Bore Gauge 2 Point Inside Measurement Instrument 15-35mm - Image 5
,

Mitutoyo 511-435-20 Blind Hole Bore Gauge 2 Point Inside Measurement Instrument 15-35mm

Compare

Basic Features:

  • Model No: Mitutoyo 511-435-20
  • Range: 15-35mm
  • Resolution: 0.001mm
  • Accuracy: ± 4 µm (0.004mm)
  • Measuring Depth: 150mm
  • Measuring Force: 4N or less
  • No. of Anvils: 11
  • Analogue
  • Metric

$336.98 $414.42

Compare

Detailed Description

This is a bore gauge for measuring blind holes that offers you the following benefits:

  • You can measure the inside diameter close to the bottom of blind holes.
  • Contact points are carbide giving you high durability and wear resistance.

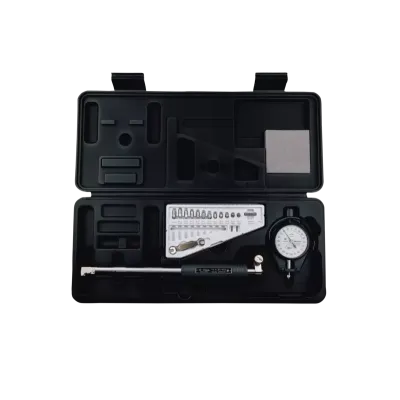

Box Contains

  • Bore Gauge: 511-415
  • Dial Indicator: 2109AB-10
  • No. of Sub-Anvils: 11
