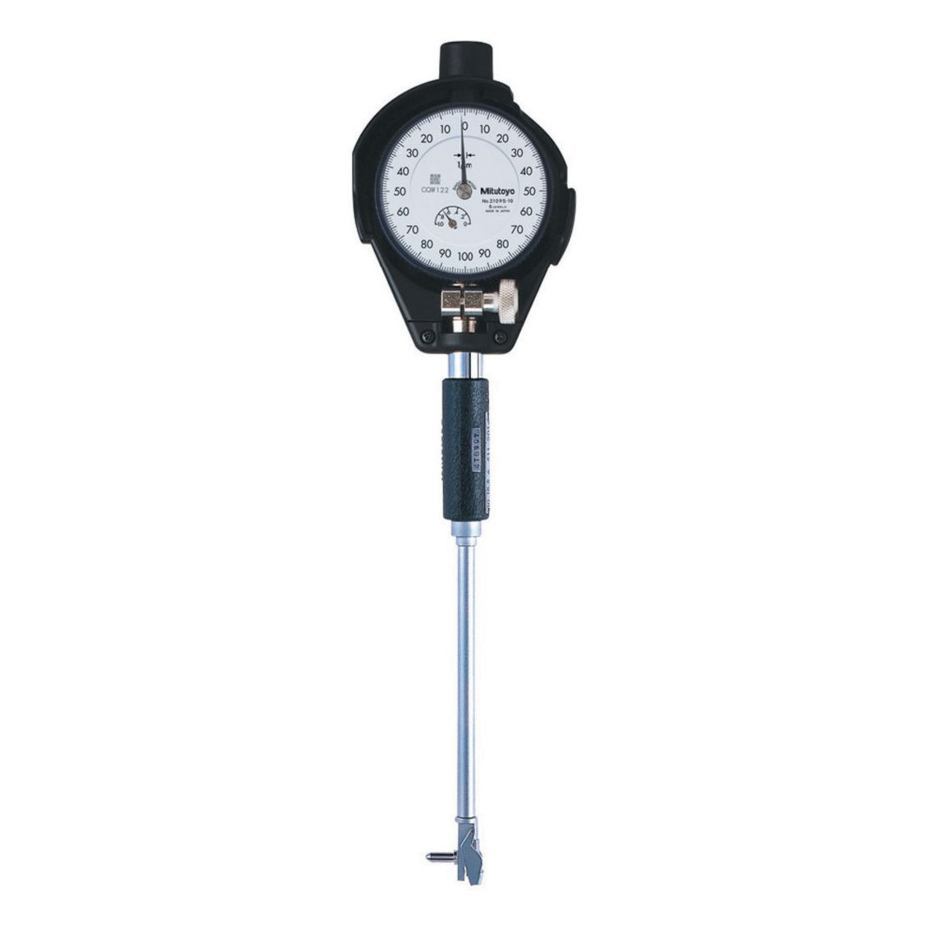

Mitutoyo 511-203-20 Small Hole Bore Gauge 2 Point Inside Measuring 10-18.5mm


Basic Features:

  • Model No: Mitutoyo 511-203-20
  • Range: 10-18.5mm
  • Resolution: 0.001mm
  • Accuracy:  ± 2µm (0.002mm)
  • Measuring Depth: 100mm
  • Measuring Force: 2N or less
  • Stroke of contact point: 0.6mm
  • No. of Anvils: 9
  • Analogue
  • Metric

$205.58 $249.65

Compare

Detailed Description

These 2 point inside measuring instrument bore gauges automatically self-centre via a centring bridge.

They offer you the following benefits:

  • A long plunger stroke gives you amazing accuracy.
  • Interchangeable washers 0.5mm thick are supplied as standard accessories, so you can enable setting in small steps.
  • Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
  • A large grip reduces heat transfer from the operator by 50%.
