-26%
Test, Measure & Inspect, Vernier Caliper

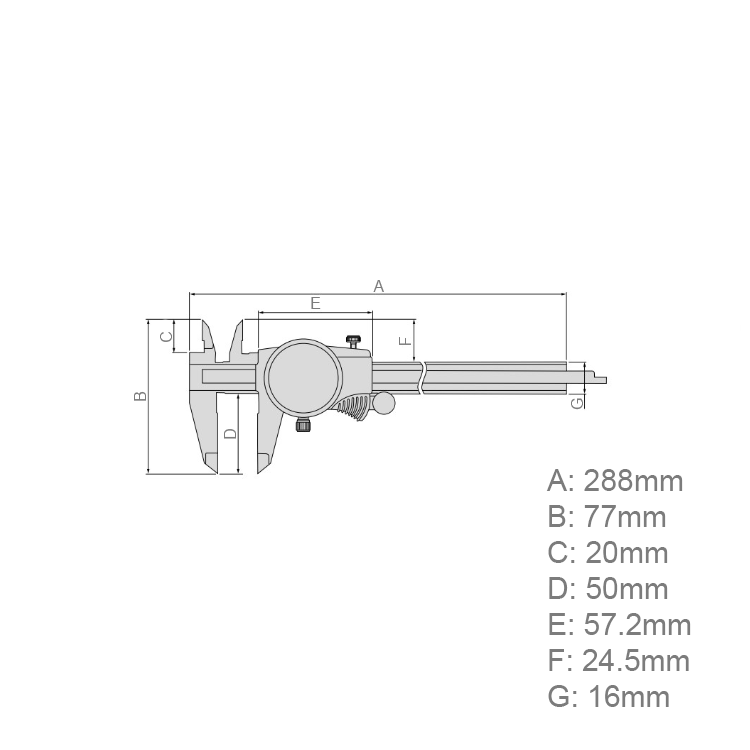

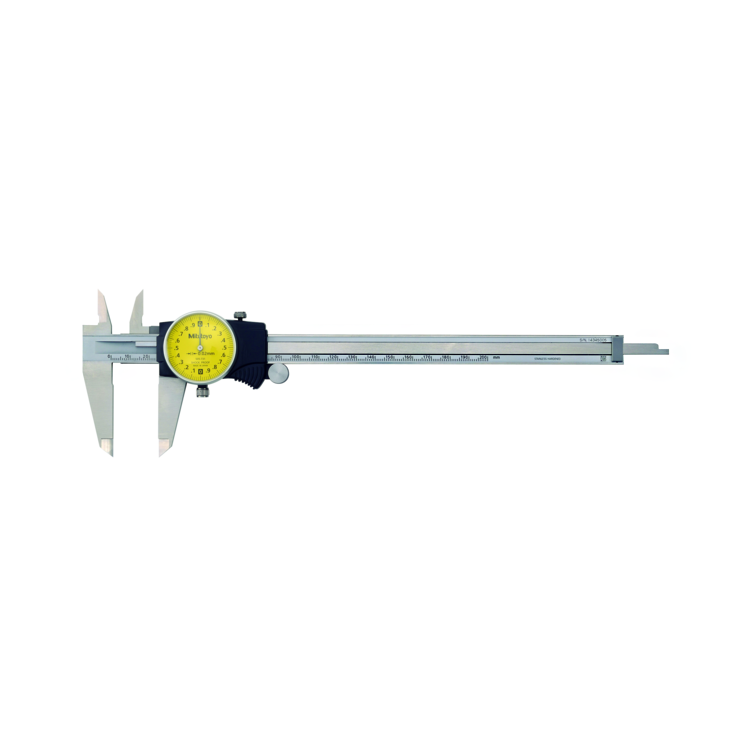

Mitutoyo 505-731 (0.02mm) Dial Caliper 2mm/rev 0-200mm
Dial Caliper Features:
- Range: 0-200mm
- Resolution: 0.02mm, 2/mm rev
- Accuracy: ± 0.3mm
- Jaw length: 50mm
- Depth Bar: Flat
- Dial display
- Metric
- MPN: 505-731
- Brand: Mitutoyo
$79.75 $107.28
Related products
-
Test, Measure & Inspect, Vernier Caliper
Mitutoyo 500-752-20 Absolute Digimatic IP67 Caliper 0-150mm,0-6″ inch
Test, Measure & Inspect, Vernier CaliperMitutoyo 500-752-20 Absolute Digimatic IP67 Caliper 0-150mm,0-6″ inch
Detailed Description
The 500-752-20 Coolant-Proof Digimatic Caliper delivers accurate and repeatable inside, outside, depth, and step measurements with accuracy and unrestricted speed in an ergonomic design. The caliper’s slide and jaws are constructed of hardened stainless steel and provide an impact-resistant, easy-to-ready LCD display for durable, reliable use. The ABSOLUTE caliper can be used in workshop conditions exposed to coolant, water, dust and oil.
SKU: n/a -
Test, Measure & Inspect
Mitutoyo – Universal Protractor 150/300mm Blade – 187-901
A Mitutoyo precision protractor for making accurate angle measurements. The angle between the stock and blade can be set and read to 5‰Ûª resolution with the aid of the built-in magnifier. Can be attached to a height gauge for surface plate work.
Features
Inch-Metric: Metric Graduation: 5 ‘ (0° – 90° – 0°) Blade edge angle: 60°, 45°, 30° edges Blade length: 150, 300 mm Delivered: In a box with acute angle attachment, holder for height gauge, magnifier Mass: 390 g SKU: Mitutoyo 187-901 -
Dial Indicator, Test, Measure & Inspect
Mitutoyo 543-790-10 (0.001mm) IP42 Lug Back Digital Indicator ID-S 0-12.7mm
Dial Indicator, Test, Measure & InspectMitutoyo 543-790-10 (0.001mm) IP42 Lug Back Digital Indicator ID-S 0-12.7mm
Detailed Description
543-790-10 MITUTOYO Simple Design Absolute Digimatic Indicator: 0-12.7mm
The Mitutoyo 543-790-10 Simple Design Absolute Digimatic Indicator has the following specifications:
- Range: 12.7mm
- Resolution: 0.001mm
- Model: ID-S112X
- Accuracy: 0.003mm
- Measuring force: 1.5N or less
Features:
- As compact as standard Series 2 dial indicators.
- After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over the entire battery life.
- Employing the ABSOLUTE linear encoder, the ID-S always displays the spindle “Absolute Position” from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
- SPC data output- YES
SKU: n/a -
Micrometer, Test, Measure & Inspect
Mitutoyo 103-177 (0.001″) Ratchet Stop Economy Design Micrometer 0-1″
Micrometer, Test, Measure & InspectMitutoyo 103-177 (0.001″) Ratchet Stop Economy Design Micrometer 0-1″
Micrometer Features:
- Range: 0-1″
- Resolution: 0.001″
- Accuracy: ± 0.0001″
- Parallelism: [0.00008+0.00004(L/4)]”, L = max. range (inch)
- Flatness: 0.000024″
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Inch
- MPN: 103-177
- Brand: Mitutoyo
SKU: Mitutoyo 103-177 -
Test, Measure & Inspect, Vernier Caliper
Mitutoyo 532-121 (0.02mm) Vernier Caliper Fine Adjustment 0-280mm (0-11″)
Test, Measure & Inspect, Vernier CaliperMitutoyo 532-121 (0.02mm) Vernier Caliper Fine Adjustment 0-280mm (0-11″)
Vernier Caliper Features:
- Range: 0-280mm (0-11″)
- Resolution: 0.02mm (0.001″)
- Accuracy: ± 0.4mm
- Jaw length: 64mm
- Depth Bar: Flat
- Fine adjustment
- Inch/metric
- MPN: 532-121
- Brand: Mitutoyo
SKU: Mitutoyo 532-121
