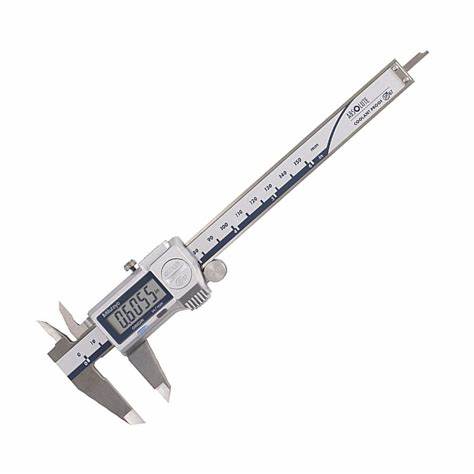

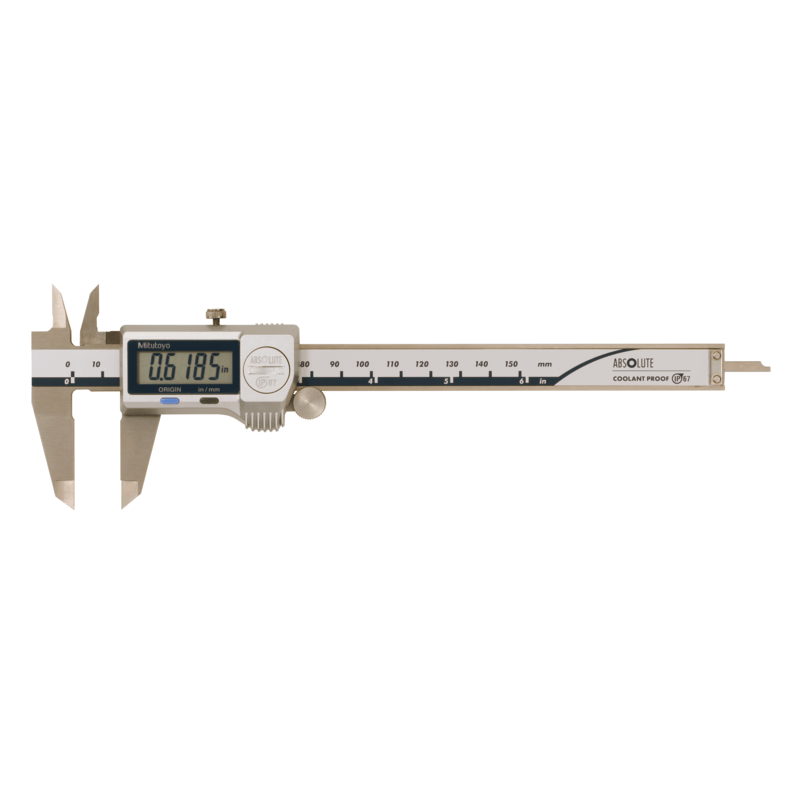

Mitutoyo 500-762-20 ABS IP67 Caliper: 0-6″/150mm with SPC Data Output


Basic Features:

  • Range: 0-150mm (0-6″)
  • Resolution: 0.01mm (0.0005″)
  • Accuracy: ± 0.02mm (0.001″)
  • Repeatability: 0.01mm (0.0005″)
  • Jaw length: 40mm
  • IP67 Protected: Waterproof (coolant & dust resistant)
  • Depth Bar: Square
  • Battery Life: Approx. 5 Years
  • Origin (ABS-Zero): Yes
  • Inch/Metric
  • SPC Data Output – YES
  • Model No: Mitutoyo 500-762-20

$193.72 $217.86

Compare

Detailed Description

This IP67 ABSOLUTE digimatic caliper allows reliable measurements in a wide range of situations and offers you the following benefits:

  • Excellent resistance against water and dust (IP67 protection level) enabling use in machining situations that include splashing coolant fluid
  • Character height on the LCD display increased from 7.4mm to 9.0mm for improved readability
  • Redesigned battery cover eliminates the need for a screwdriver
  • ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
  • Origin reset is not required even when data is re-displayed after loss due to insufficient illumination during use
  • Stainless steel construction protects caliper components and ensures accurate performance for longer duration
  • SPC output function allows for quick and easy data management in real time
