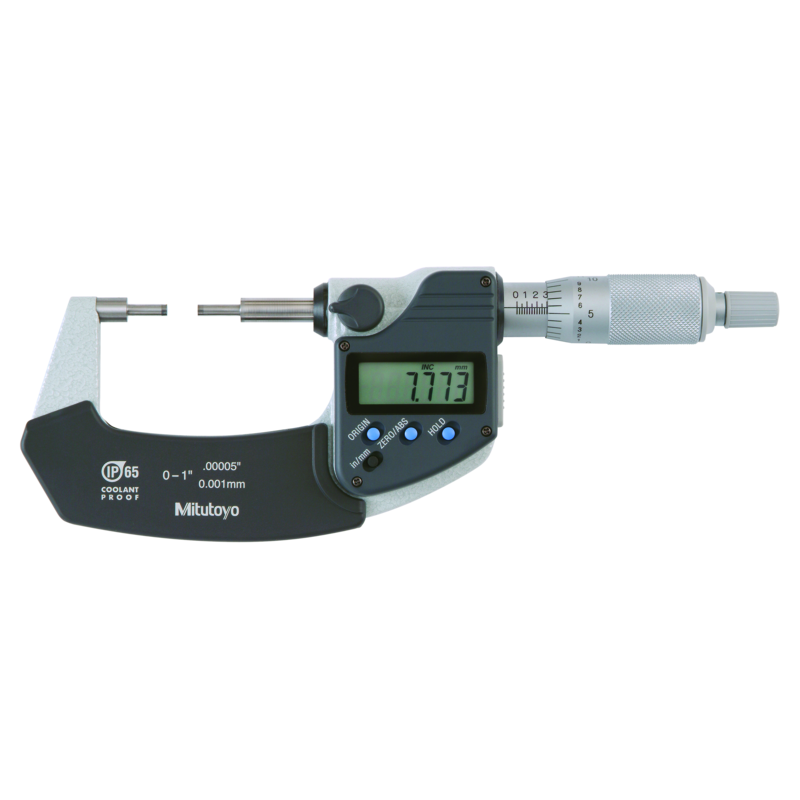

Mitutoyo 331-351-30 Digimatic Spline IP65 Micrometer SPC Data Output 0-25mm (0-1″)


Product Features:

  • Model No: Mitutoyo 331-351-30
  • Range: 0-25mm (0-1″)
  • Resolution: 0.001mm (0.00005″)
  • Accuracy: ± 0.002mm (0.0001″)
  • Flatness: 0.0003mm (0.000012″)
  • Parallelism: 0.002mm (0.00008″) + 0.001mm (0.00004″) L/4 L = Max
  • Type A – Flat/Flat
  • Measuring surfaces: Carbide-tipped, micro-lap finish
  • IP65 Protected: Waterproof (coolant & dust resistant)
  • Ratchet Stop
  • Thimble and Sleeve scale
  • With spindle lock: 6.35 mm diameter, spindle pitch 0.635 mm
  • SPC Data Output – YES
  • Hold function
  • MPN: 331-351-30
  • Brand: Mitutoyo

$341.41 $400.07 Inc GST

Compare

Detailed Description

This Digimatic Spline Micrometer makes it easy for you to measure grooves and shaped parts. It offers you the following benefits:

  • Outstanding accuracy and oil-resistant material used for all plastic parts (IP65)
  • Anvil and spindle are of small diameter for measuring splined shafts, slots and keyways.
  • Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.

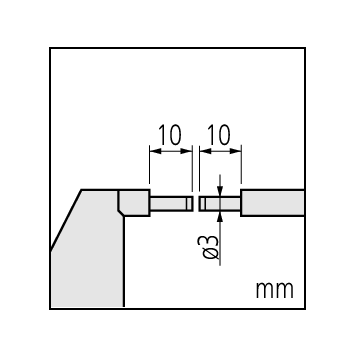

  • 3mm measuring face
  • SPC Data Output – YES
Range (0 to 25.4) mm , (0 to 1)”
Resolution 0.001 mm , 0.00005″
Accuracy ± 2µm , ± 0.0001″
Mass 330 g
Remarks Type A
Flatness 0.3µm , 0.000012″
Parallelism 2µm or less , 0.00008″ or less
Measuring Faces Carbide tipped
Display LCD
Measuring Force (5 to 10) N
Graduation 0.01 mm , 0.0001″
Warranty One-year limited manufacturer’s warranty

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Mitutoyo 331-351-30 Digimatic Spline IP65 Micrometer SPC Data Output 0-25mm (0-1″)”

There are no reviews yet.

Data Sheet

Download

Mitutoyo 331-351-30
