Detailed Product Description:
This is a standard, metric dial indicator. It offers you the following benefits:
- Large-diameter dial face diameter = 78 mm for easy reading
- Supplied with limit markers and a bezel clamp as standard
- Continuous dial
-18%
Dial Indicator, Test, Measure & Inspect

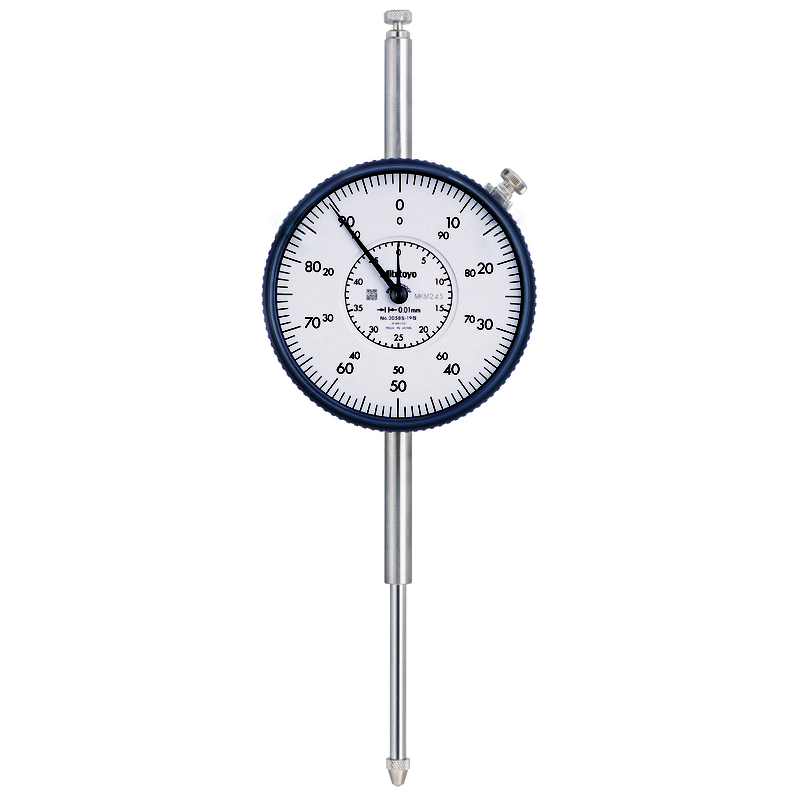

Mitutoyo 3058A-19 (0.01mm) Lug Back Shockproof Dial Indicator 50mm
Basic Product Features:
- Model No: Mitutoyo 3058A-19
- Range: 50mm
- Resolution: 0.01mm
- Range per rev: 1mm
- Scale: 0-100
- Accuracy: ±0.03mm
- Hysteresis: 0.006mm
- Repeatability: 0.005mm
- Jelewed Bearing
- Measuring Force: 3N or less
- Stem diameter: 8mm
- Contact point: Carbide tipped, thread: M 2.5 x 0.45 mm
- Shockproof
$105.52 $129.25
Based on 0 reviews
Be the first to review “Mitutoyo 3058A-19 (0.01mm) Lug Back Shockproof Dial Indicator 50mm”
