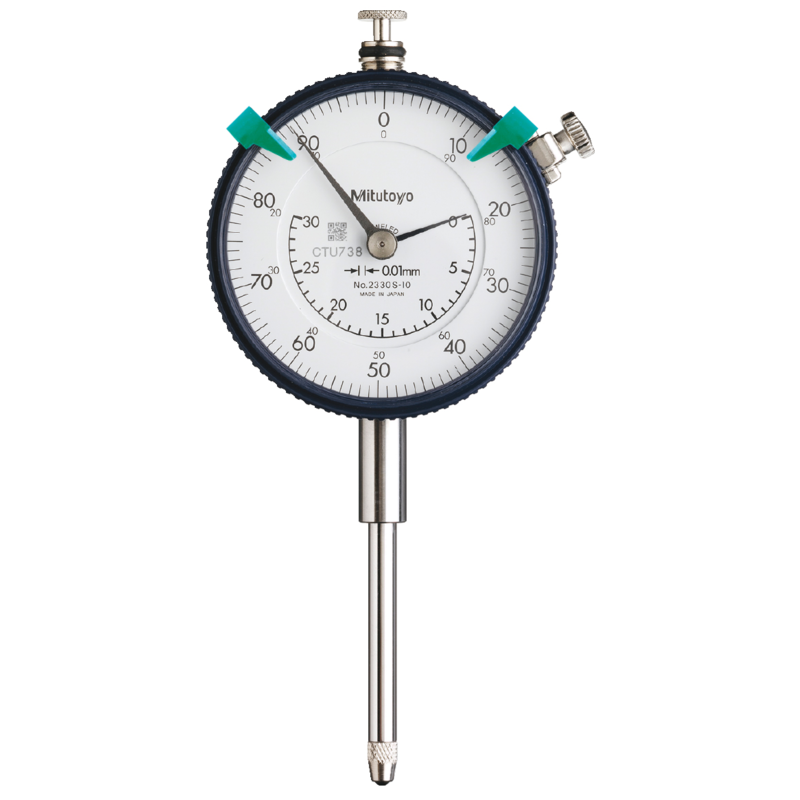

Mitutoyo 2330A-10 (0.01mm) Lug Back Coaxial Revolution Counter Dial Indicator 30mm

Availability:

4 in stock


Product Basic Features:

  • Model No: Mitutoyo 2330A-10
  • Range: 30mm
  • Range per rev: 1mm
  • Resolution: 0.01mm
  • Accuracy: ± 0.025mm
  • Retrace: 0.007mm
  • Accuracy 1/10 rev: 0.010mm
  • Accuracy 1 rev: 0.015mm
  • Repeatability: 0.005mm
  • Scale: ±0-100
  • Jeweled Bearing
  • Continous Dial
  • Measuring Force: 2.5N or less
  • Carbide tipped, thread: M 2.5 x 0.45 mm
  • Stem: 8mm

$102.48 $115.12

4 in stock

Compare

Product Detailed Description:

This is a standard, metric dial indicator. It offers you the following benefits:

  • Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
  • No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Mitutoyo 2330A-10 (0.01mm) Lug Back Coaxial Revolution Counter Dial Indicator 30mm”

There are no reviews yet.

Data Sheet

Download

Mitutoyo 2330A-10
