-51%
Dial Indicator, Test, Measure & Inspect

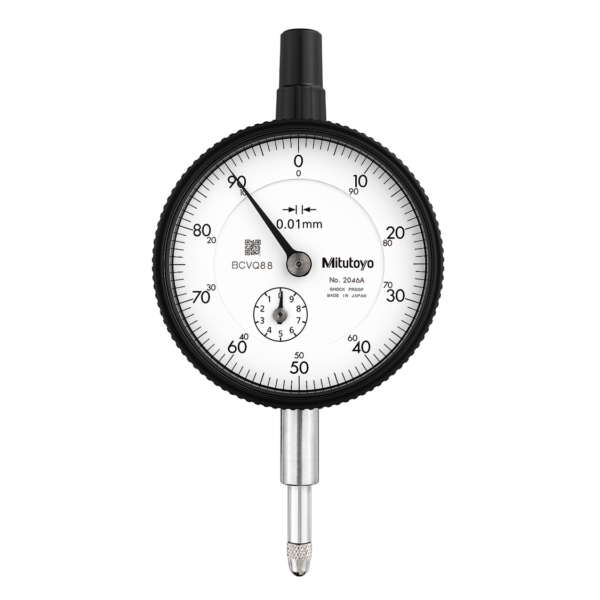

Mitutoyo 2046A (0.01mm) Lug Back Shockproof Dial Indicator 0-10mm
Indicator Features:
- Range: 0-10mm
- Resolution: 0.01mm
- Accuracy: ± 0.013mm
- Accuracy 1/10 rev: 0.005mm
- Accuracy 1 rev: 0.010mm
- Repeatability: 0.003mm
- Measuring Force: 1.4N or less
- Carbide tipped, thread: M 2.5 x 0.45 mm
- MPN: 2046A-09
- Brand: Mitutoyo
$29.13 $59.43
Related products
-
Micrometer, Test, Measure & Inspect
Mitutoyo 103-130 (0.001mm) Ratchet Stop Economy Design Micrometer 25-50mm
Micrometer, Test, Measure & InspectMitutoyo 103-130 (0.001mm) Ratchet Stop Economy Design Micrometer 25-50mm
Micrometer Features:
- Range: 25-50mm
- Resolution: 0.001mm
- Accuracy: ± 0.002mm
- Flatness: 0.0006mm
- Parallelism: (2+R/100) μm – R = max range
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Metric
- MPN: 103-130
- Brand: Mitutoyo
SKU: Mitutoyo 103-130 -
Dial Indicator, Test, Measure & Inspect
Mitutoyo 543-781-10 (0.01mm) Lug Back Digital Indicator ID-S 0-12.7mm
Dial Indicator, Test, Measure & InspectMitutoyo 543-781-10 (0.01mm) Lug Back Digital Indicator ID-S 0-12.7mm
Detailed Description
This Mitutoyo standard model of indicator is reliable and easy to use. The ABSOLUTE Digimatic Indicator ID-S offers you the following benefits:
- The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
- You can access all functions by using the large, user-friendly buttons on the front of the indicator.
- Large character height of 9 mm provides good readability.
- Exceptional battery life.
- Data Output – YES
- Origin reset is not required even when data is re-displayed after a disappearance due to insufficient illumination during use
SKU: n/a -
Micrometer, Test, Measure & Inspect
Mitutoyo 103-177 (0.001″) Ratchet Stop Economy Design Micrometer 0-1″
Micrometer, Test, Measure & InspectMitutoyo 103-177 (0.001″) Ratchet Stop Economy Design Micrometer 0-1″
Micrometer Features:
- Range: 0-1″
- Resolution: 0.001″
- Accuracy: ± 0.0001″
- Parallelism: [0.00008+0.00004(L/4)]”, L = max. range (inch)
- Flatness: 0.000024″
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Inch
- MPN: 103-177
- Brand: Mitutoyo
SKU: Mitutoyo 103-177 -
Test, Measure & Inspect, Vernier Caliper
Mitutoyo 500-196-30, Digital Caliper, Absolute Digimatic, Advance Onsite Sensor, 0-6″/0-150mm, 0.01 mm Resolution
Test, Measure & Inspect, Vernier CaliperMitutoyo 500-196-30, Digital Caliper, Absolute Digimatic, Advance Onsite Sensor, 0-6″/0-150mm, 0.01 mm Resolution
500-196-30 is a digital calliper equipped with standard outside and inside jaws. Hardened stainless steel construction and equipped with the latest electromagnetic ABSOLUTE AOS System scale for error-free, high-speed measurement. It is highly resistant to water, oil, and staining with dust, and water protection confirming to IP67 level.
- Flat depth bar, thumb roller
- ±0.001″ max permissible error (E MPE)
- ±0.002″ maximum permissible error (S MPE)
- 0.0005″ digital step, battery life is approx. 5 years under normal use
- With built in ABS scale, no need for origin setting at every power-on
- There is no screw on the battery lid, easy, quick battery management
- No more handwritten records thanks to the built-in measurement data output function
- Measuring range from 0 to 6”
- Delivered including box, SR44 battery, certificate of inspection
SKU: n/a
