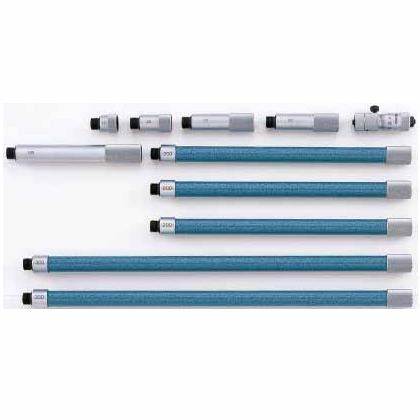

Mitutoyo 137-215 Hardened Face Tubular Inside Micrometer 2-60″

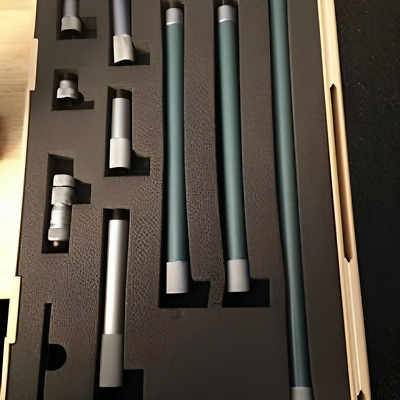

Mitutoyo 137-215 Hardened Face Tubular Inside Micrometer 2-60″ - Image 2
,

Mitutoyo 137-215 Hardened Face Tubular Inside Micrometer 2-60″

Compare

Basic Features:

  • Model No: Mitutoyo 137-215
  • Range: 2-60″
  • Resolution: 0.001″
  • Accuracy: ± (3+n+L/50) μm* / ±(0.00015+0.00005n+0.00005 (L/2))” n = number of tubes, L = maximum measuring length (mm)
  • Extension rods: 3
  • Measuring spindle: Spindle pitch 0.025″
  • Measuring face: Hardened Steel
  • Measuring method: 2-point
  • Analogue

$283.49 $318.20 Inc GST

Compare

Detailed Description

  • It allows you to measure a wide range of ID measurements by combining extension rods (pipes) and anvils with the micrometer head.
  • Interchangeable extensions with cylindrical gage rods are spring mounted in protective sleeves so you can extend the measuring range.
  • Carbide measuring faces are available
