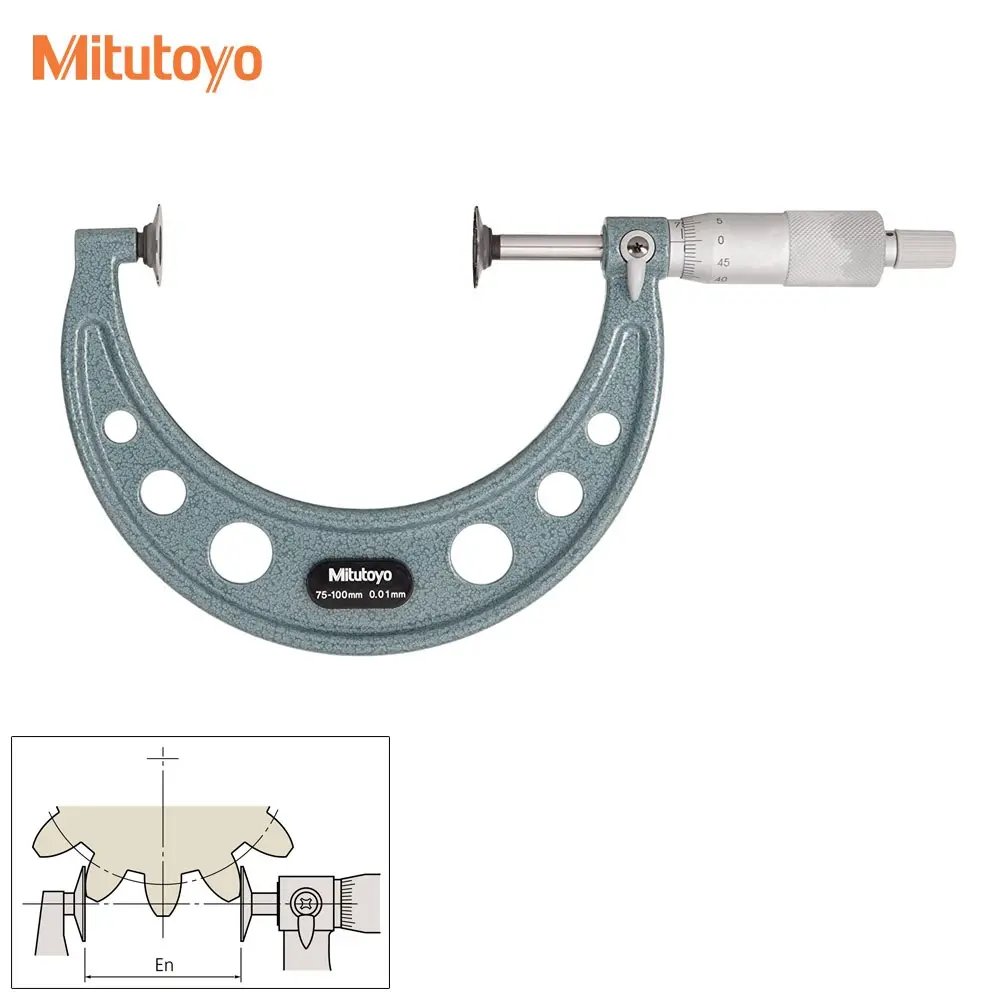

Mitutoyo 123-104 Outside Micrometer 75~100mm 0.01mm
Mitutoyo 123-104 Outside Micrometer 75~100mm 0.01mm - Image 2
,

Mitutoyo 123-104 Outside Micrometer 75~100mm 0.01mm

Compare

Basic Features:

  • Range: 75-100mm
  • Resolution: 0.01mm
  • Accuracy: ± 0.006mm
  • Flatness: 0.001mm
  • Parallelism: 0.006mm
  • Disc: 20mm
  • Measuring face: Hardened steel spindle and anvil
  • Measuring spindle: With spindle lock, ø6.35mm, spindle pitch 0.5mm
  • Scale: Thimble and sleeve satin chrome finish, ø18mm
  • Analogue
  • Metric
  • Model No: Mitutoyo 123-104

$121.50 $137.12 Inc GST

Compare

Detailed Description

  • The Mitutoyo 123-104 Outside Micrometer is a highly accurate measuring tool, widely used in the fields of production, mechanics, and manufacturing.

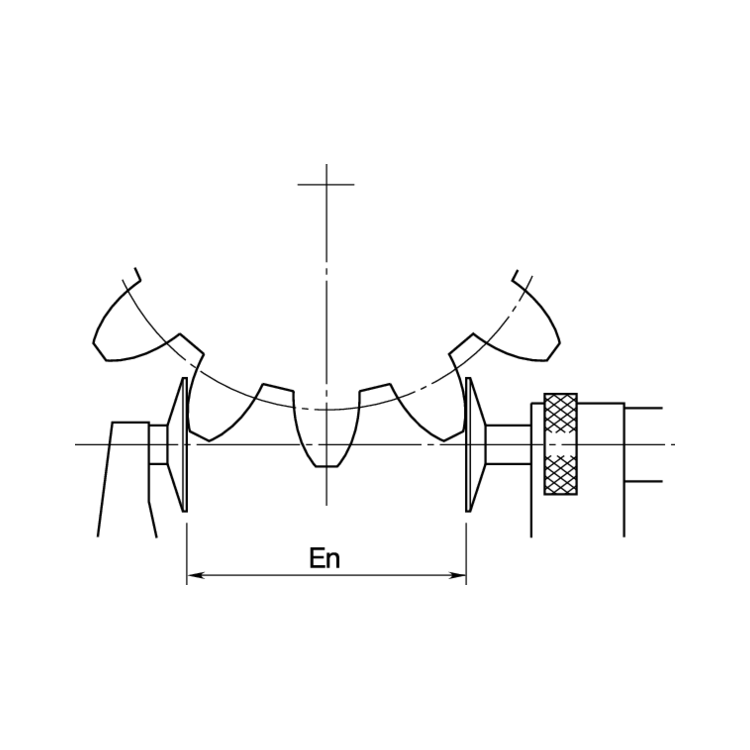

  • This non-digital micrometer is provided with a disc-ended spindle and anvil to enable measurement of shrouded features, such as gear teeth. A ratchet stop guarantees repeatable measurement.
