Detailed Description
- Measuring range: 0~25mm
- Division: 0.01mm
- Accuracy: ± 3µm
- A ratchet stop guarantees repeatable measurement.
- The smallest diameter of the inner hole of the tube that can be measured: D= 2mm
-15%
Micrometer, Test, Measure & Inspect

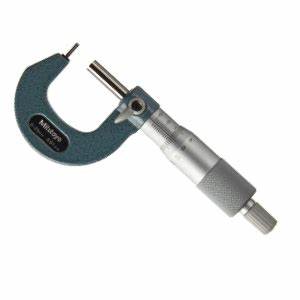

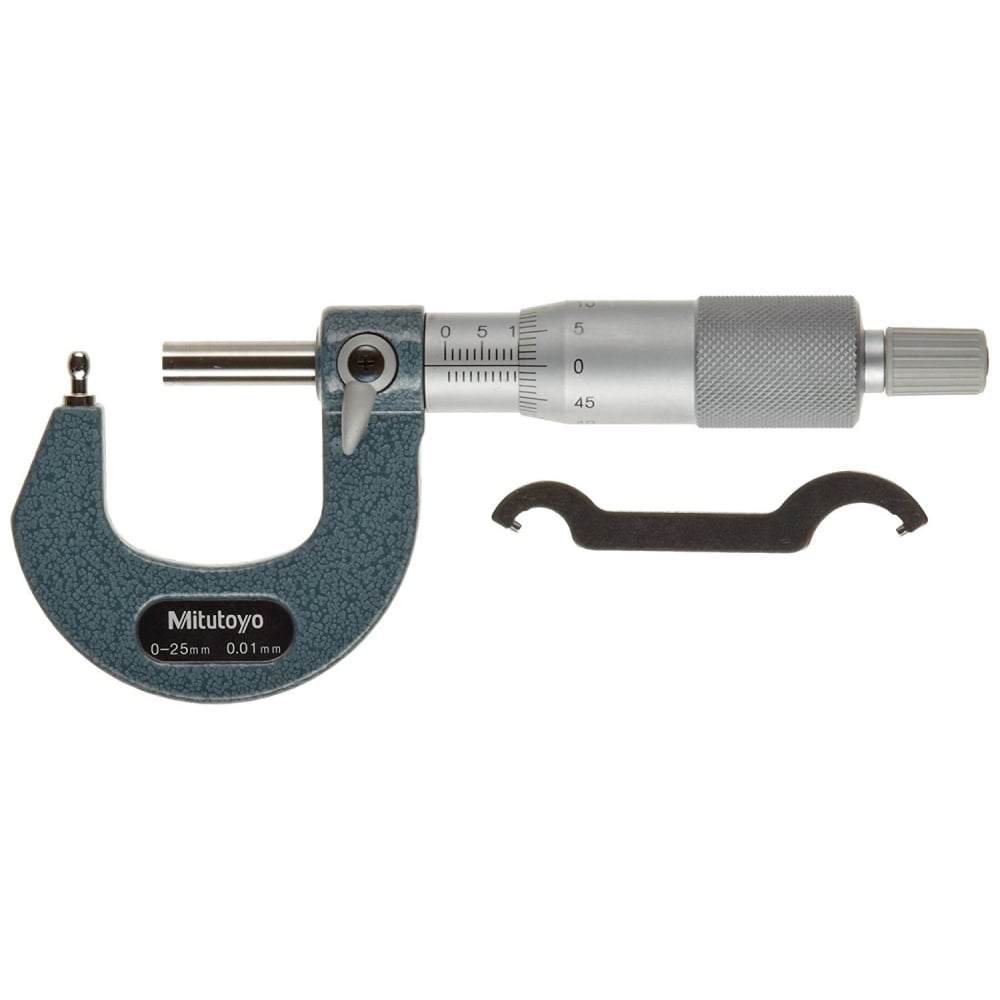

Mitutoyo 115-308 Spherical Anvil Flat Spindle Tube Micrometer 0-25mm,0.01mm
Basic Features:
- Model No: Mitutoyo 115-308
- Range: 0-25mm
- Resolution: 0.01mm
- Accuracy: ± 0.003mm
- Flatness: 0.0006mm
- Spindle: Carbide-tipped, flat

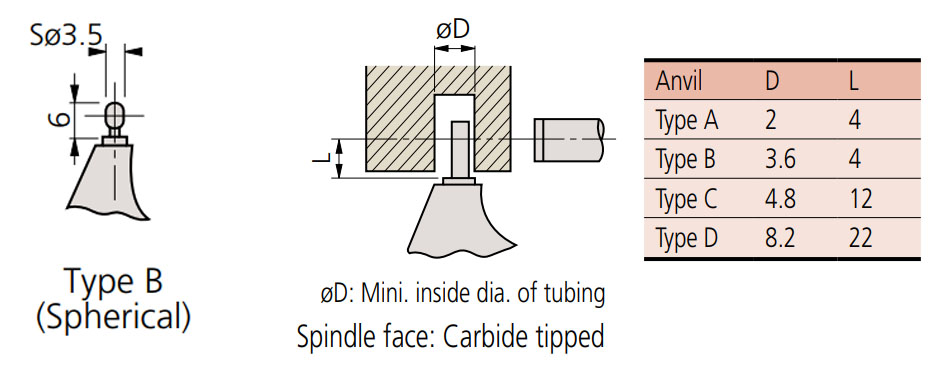

- Anvil: Hardened steel, Type B, spherical pin D=3.5 mm
- Ratchet Stop
- Thimble and Sleeve scale
- With spindle lock: 6.35 mm diameter, spindle pitch 0.5mm
- Metric
$68.56 $81.08
Based on 0 reviews
Be the first to review “Mitutoyo 115-308 Spherical Anvil Flat Spindle Tube Micrometer 0-25mm,0.01mm”
