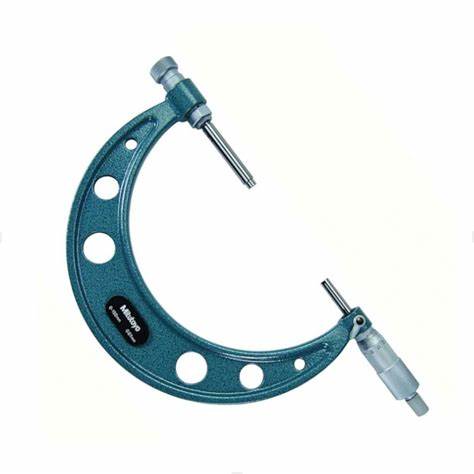

Mitutoyo 104-135A Outside Micrometer Interchangeable Anvil, 0 to 150 mm
Mitutoyo 104-135A Outside Micrometer Interchangeable Anvil, 0 to 150 mm - Image 2
Mitutoyo 104-135A Outside Micrometer Interchangeable Anvil, 0 to 150 mm - Image 3
,

Mitutoyo 104-135A Outside Micrometer Interchangeable Anvil, 0 to 150 mm

Compare

Basic Features:

  • Model No: Mitutoyo 104-135A
  • Range: 0-150mm
  • Resolution: 0.01mm
  • Parallelism: 0.003mm
  • Flatness: 0.0006mm
  • Measuring force: 5-10N
  • Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
  • Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.5mm
  • Spindle feed error: 0.003mm
  • Interchangeable anvils: 6

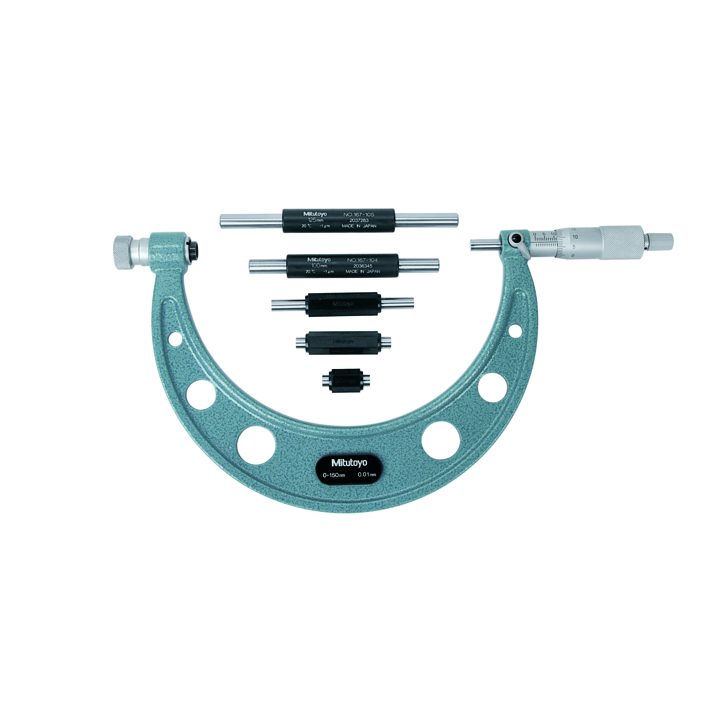

  • Setting standard: 5 (25, 50, 75, 100, 125mm)
  • Scale: Thimble and sleeve satin chrome finish, ø18 mm
  • Ratchet stop
  • Analogue
  • Metric

₹17,850.00 ₹21,500.00 Inc GST

Compare

Detailed Description

  • Mitutoyo 104-135A non-digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument.
  • Measures thickness of sheet metal, rubber, paper and plastic parts
  • Carbide-tipped measuring faces for strength
  • Ratchet stop for constant force
  • Graduation: 0.001 mm
  • Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
  • Scale is laser etched on thimble for quick and easy reading
