Detailed Description:
Lightweight workshop design with baked-enamel-finished frame featuring:
- Equipped with Ratchet Stop for constant measuring force
-12%
Micrometer, Test, Measure & Inspect

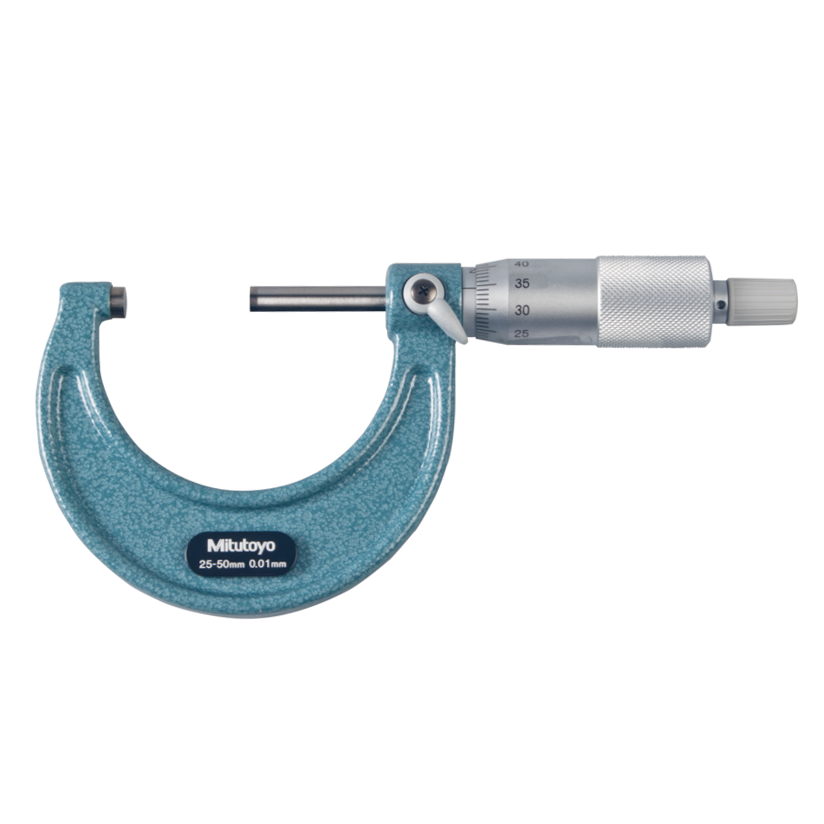

Mitutoyo 103-138 (0.01mm) Ratchet Stop Economy Design Micrometer 25-50mm
Basic Features:
- Model No: Mitutoyo 103-138
- Range: 25-50mm
- Resolution: 0.01mm
- Accuracy: ± 0.002mm
- Flatness: 0.0006mm
- Parallelism: (2+R/100) μm – R = max range
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Metric
$40.72 $46.45 Inc GST
Based on 0 reviews
Be the first to review “Mitutoyo 103-138 (0.01mm) Ratchet Stop Economy Design Micrometer 25-50mm”
