Detailed Description:
Lightweight workshop design with baked-enamel-finished frame featuring:
- Equipped with Ratchet Stop for constant measuring force
-12%
Micrometer, Test, Measure & Inspect

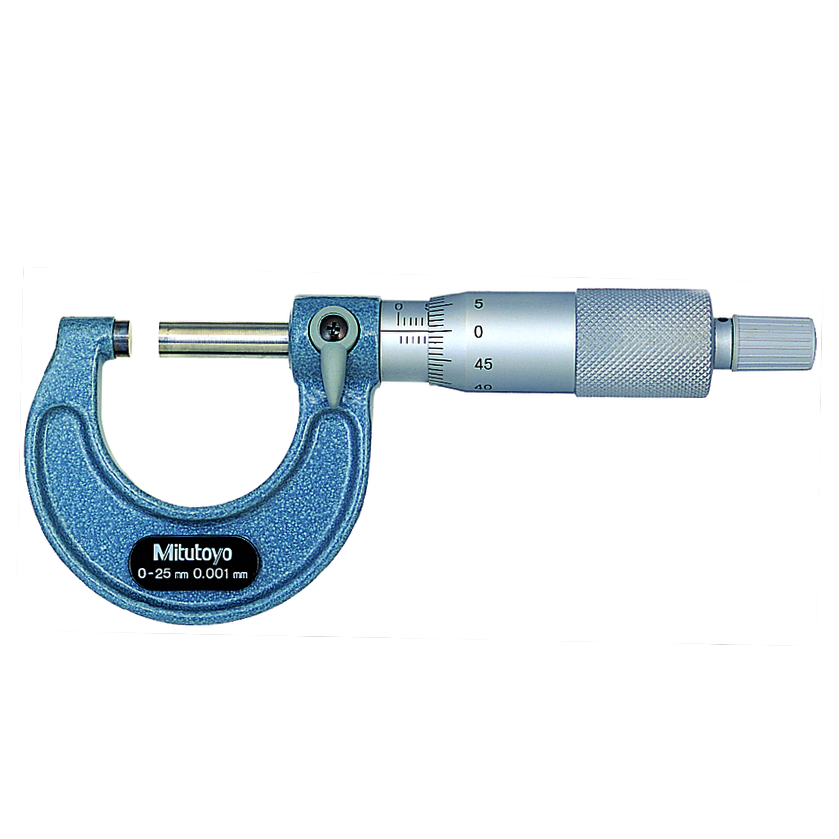

Mitutoyo 103-129 (0.001mm) Ratchet Stop Economy Design Micrometer 0-25mm
Basic Features:
- Model No: Mitutoyo 103-129
- Range: 0-25mm
- Resolution: 0.001mm
- Accuracy: ± 0.002mm
- Parallelism: (2+L/100) μm, L = max. range (mm)
- Measuring Force: 5-10N
- Measuring face: Carbide-tipped, micro-lap finish
- Measuring Spindle: With spindle lock, 6.35mm diameter
- Spindle pitch: 0.5mm
- Scale: Thimble and sleeve satin chrome finish, ø18mm
- Ratchet stop
- Analogue
- Metric
$37.00 $42.23 Inc GST
Based on 0 reviews
