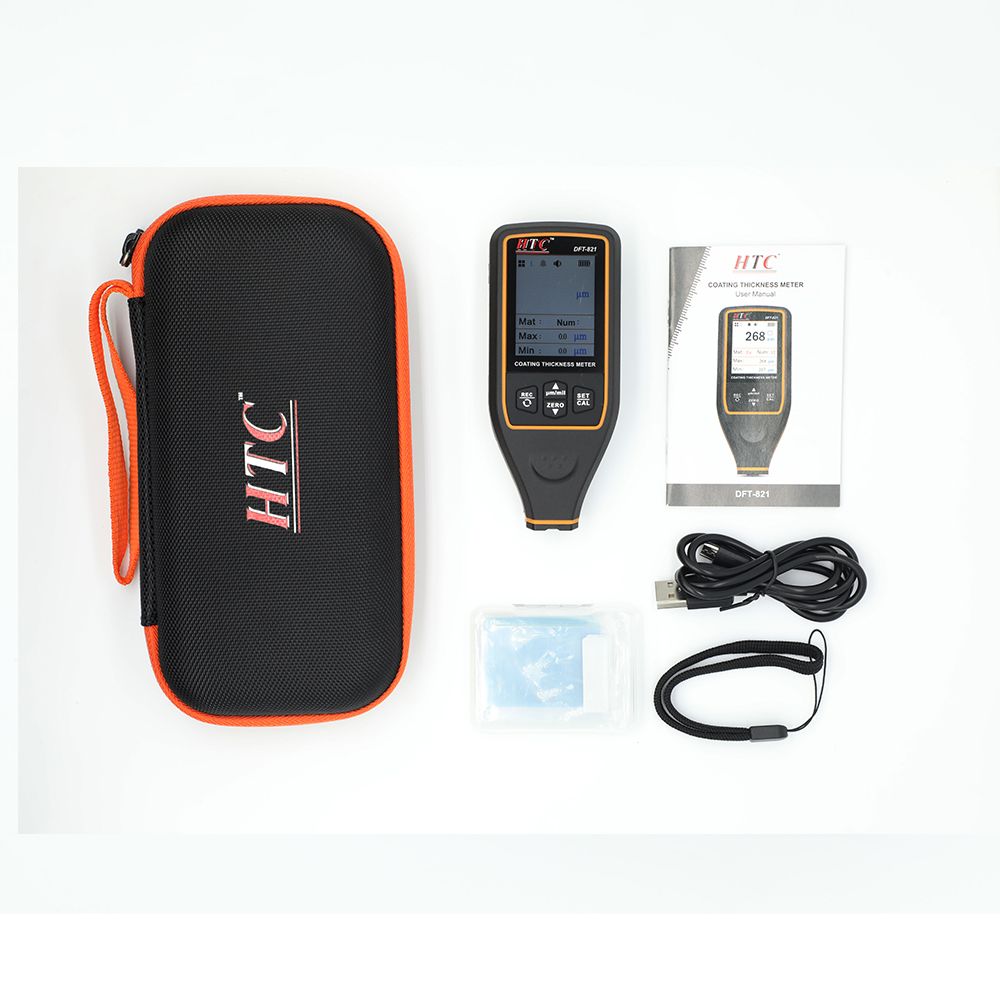

HTC - Coating Thickness Meter - DFT 821 ( complete set )
HTC - Coating Thickness Meter - DFT 821 ( complete set ) - Image 2
HTC - Coating Thickness Meter - DFT 821 ( complete set ) - Image 3
HTC - Coating Thickness Meter - DFT 821 ( complete set ) - Image 4
HTC - Coating Thickness Meter - DFT 821 ( complete set ) - Image 5
HTC - Coating Thickness Meter - DFT 821 ( complete set ) - Image 6
HTC - Coating Thickness Meter - DFT 821 ( complete set ) - Image 7
HTC - Coating Thickness Meter - DFT 821 ( complete set ) - Image 8
HTC - Coating Thickness Meter - DFT 821 ( complete set ) - Image 9
HTC - Coating Thickness Meter - DFT 821 ( complete set ) - Image 10
HTC - Coating Thickness Meter - DFT 821 ( complete set ) - Image 11
HTC - Coating Thickness Meter - DFT 821 ( complete set ) - Image 12
HTC - Coating Thickness Meter - DFT 821 ( complete set ) - Image 13

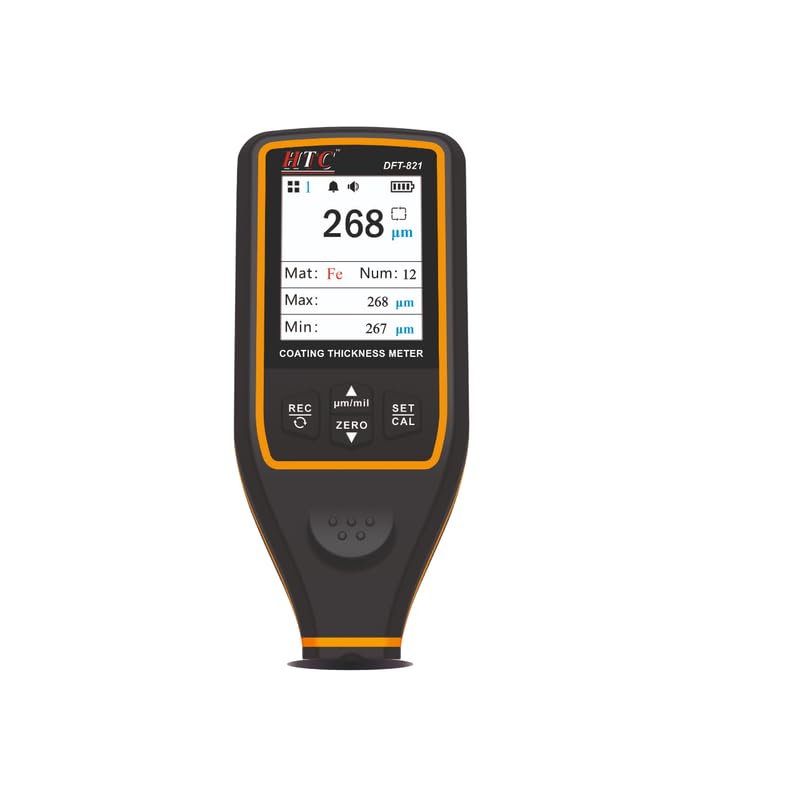

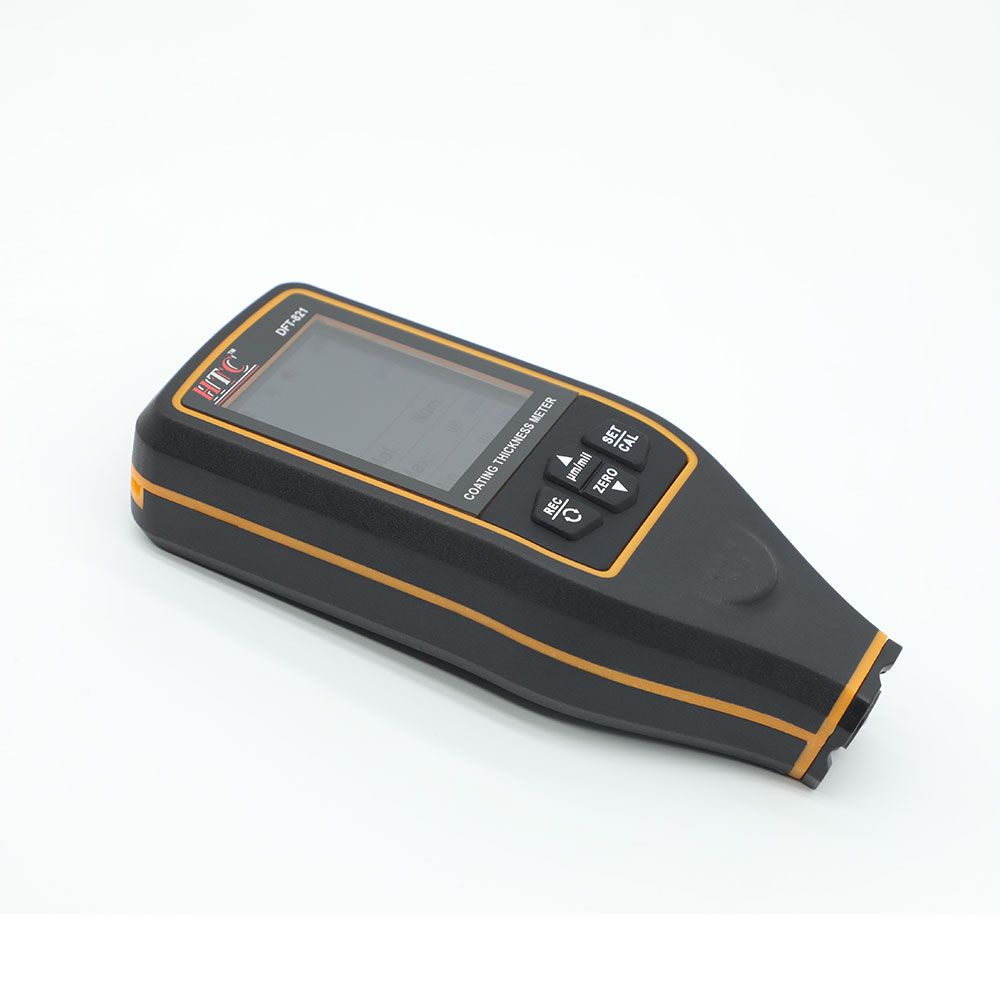

HTC – Coating Thickness Meter – DFT 821 ( complete set )

Compare

Product Key Features:

  • Model No: HTC DFT-821
  • Screen: 2 inches color screen
  • Memory: 8 groups and each 32 sets of data
  • Battery specification: 3.7V 850mAh lithium battery
  • Working temp and humidity: 0ºC~50 C, 10%~80%RH
  • Storage temp and humidity: -10ºC~60 C, 10%~70%RH

$62.46 $69.14

Compare

Product Detailed Description:

The HTC Coating Thickness Meter, specifically the DFT-821 model, is a highly capable device used for measuring coating thickness in various applications. With its wide measuring range, both for magnetic and non-magnetic coatings, from 0 to 1700 micrometers, this meter offers accurate and reliable readings for precise coating analysis. The DFT-821 Coating Thickness Meter utilizes advanced technology to measure the thickness of coatings on different surfaces.

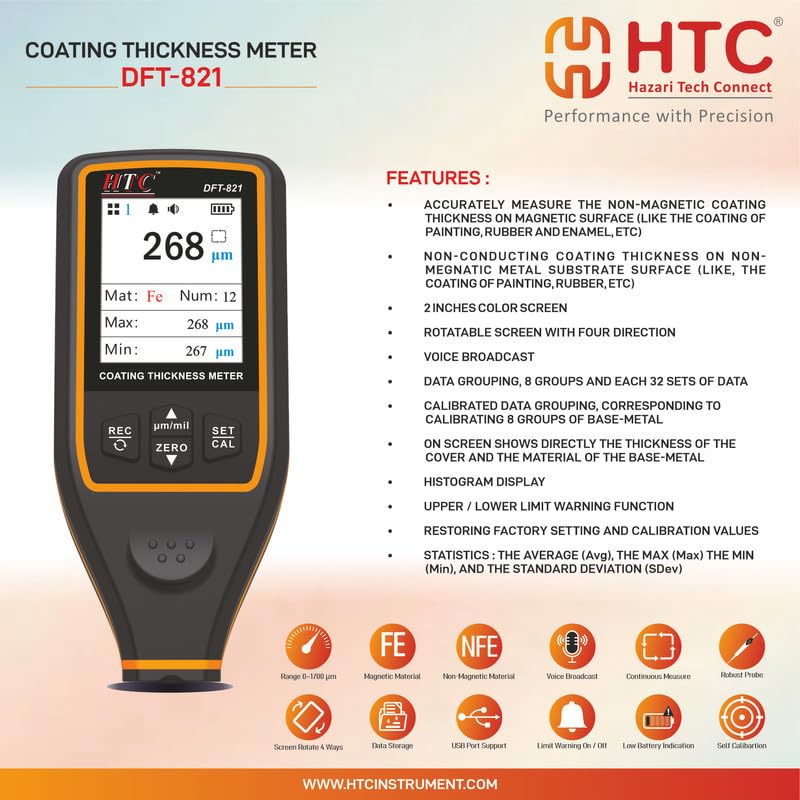

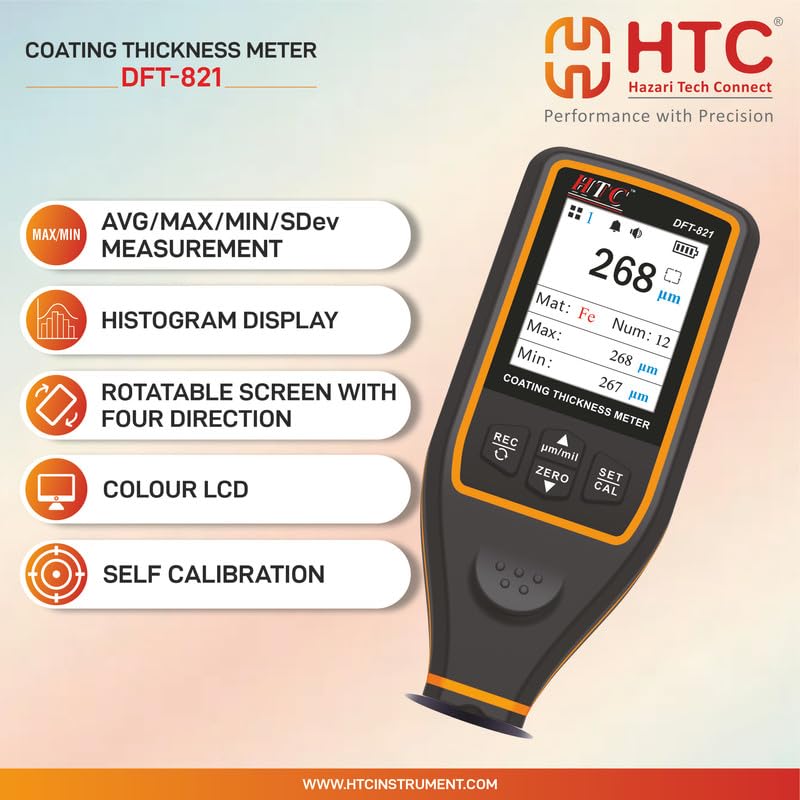

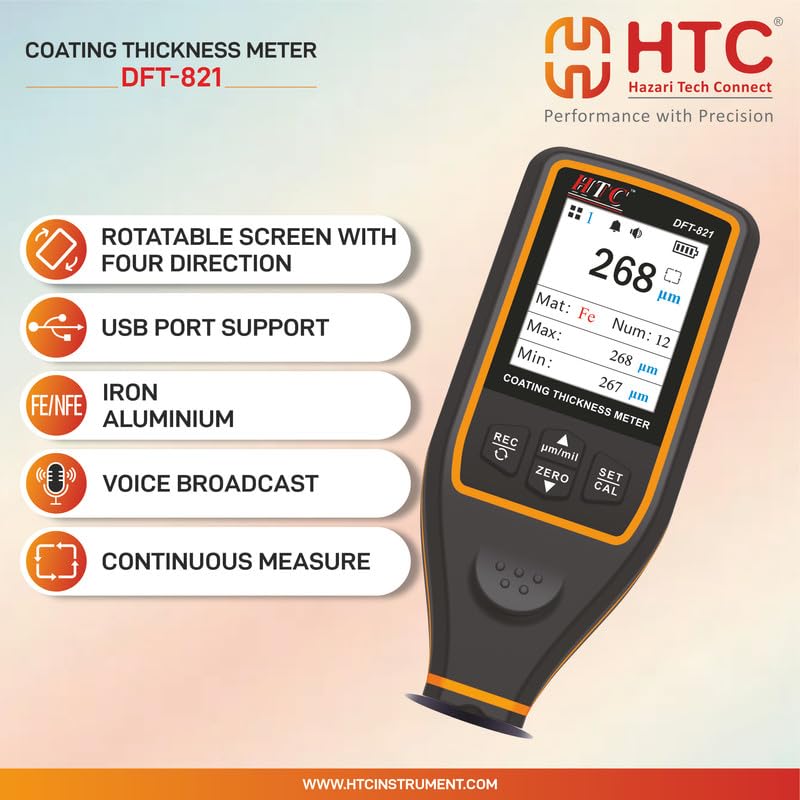

  • 2 Inches Color Screen
  • Rotatable Screen with four direction
  • Built-in 850mAh Lithium battery
  • USB port connecting PC to export data
  • Voice broadcast
  • Data grouping, 8 groups and each 32 sets of data
  • Calibrated data grouping, corresponding to calibrating 8 groups of base-metal
  • On screen shows directly the thickness of the cover and the material of the base-metal





SKU: HTC DFT 821 Category: Brand:

Technical Data & Other Specifications:

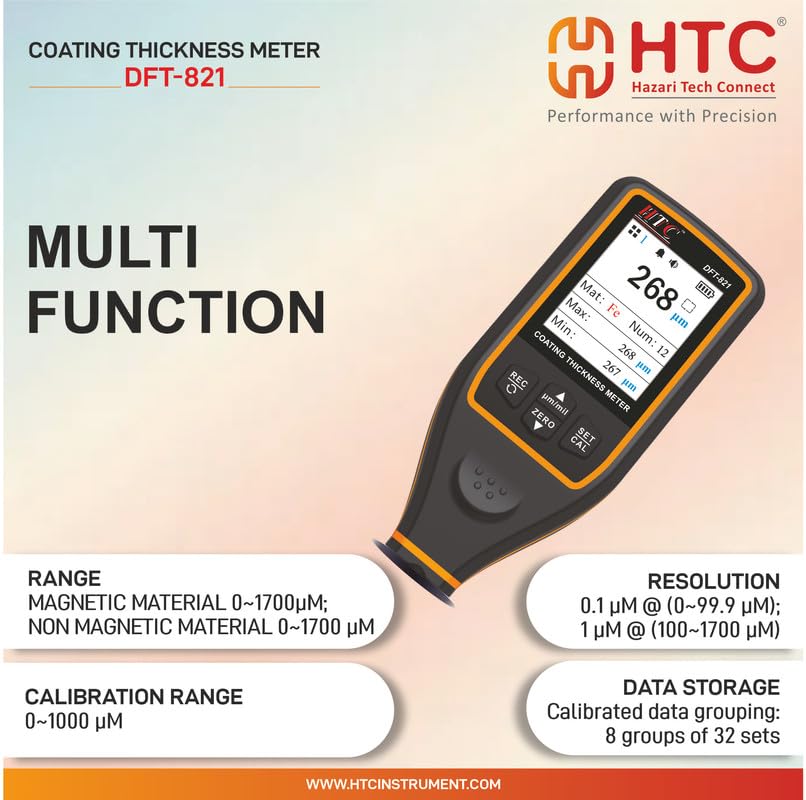

Measuring range magnetic material 0~1700 m;
non magnetic material 0~1700 m
Resolution 0.1 m @ (0~99.9 m);
1 m @ (100~1700 m)
Indication error ±(2+2%*H) m @ (0~500 m)
±(2.5%*H) m @ (500~1700 m)
Min measuring area magnetic material 25×25mm;
non magnetic material 25×25mm
Min curvature convexity 5mm; concave 30mm
Min substrate thickness magnetic material 0.2mm;
non magnetic material 0.05mm
Screen 2 inches color screen
Memory 8 groups and each 32 sets of data
Data Export USB port connecting PC to export
Battery specification 3.7V 850mAh lithium battery
Working temp and humidity 0ºC~50 C, 10%~80%RH
Storage temp and humidity -10ºC~60 C, 10%~70%RH
Dimension 120x52x26mm

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “HTC – Coating Thickness Meter – DFT 821 ( complete set )”

There are no reviews yet.

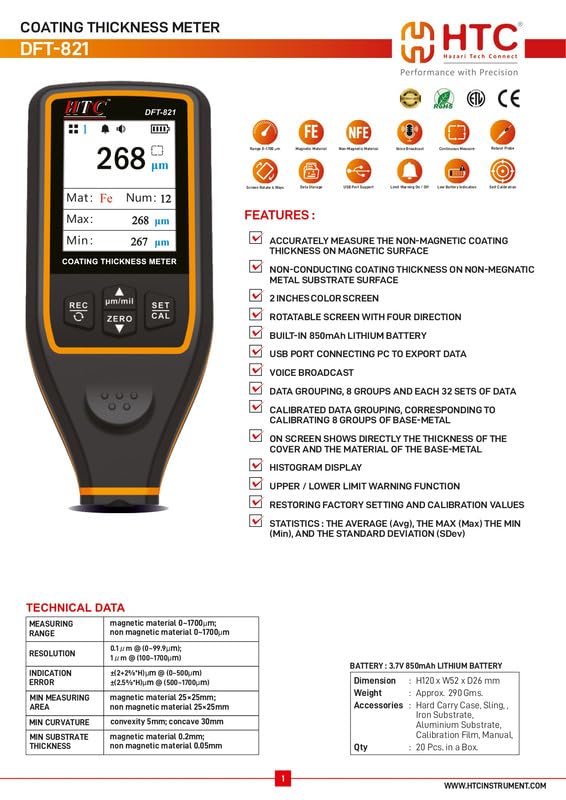

Data Sheet
